Bosch Rexroth ActiveMover - Replacing the Power Supply

Maintenance and repair 143/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
10.4.15 Replacing the power supply

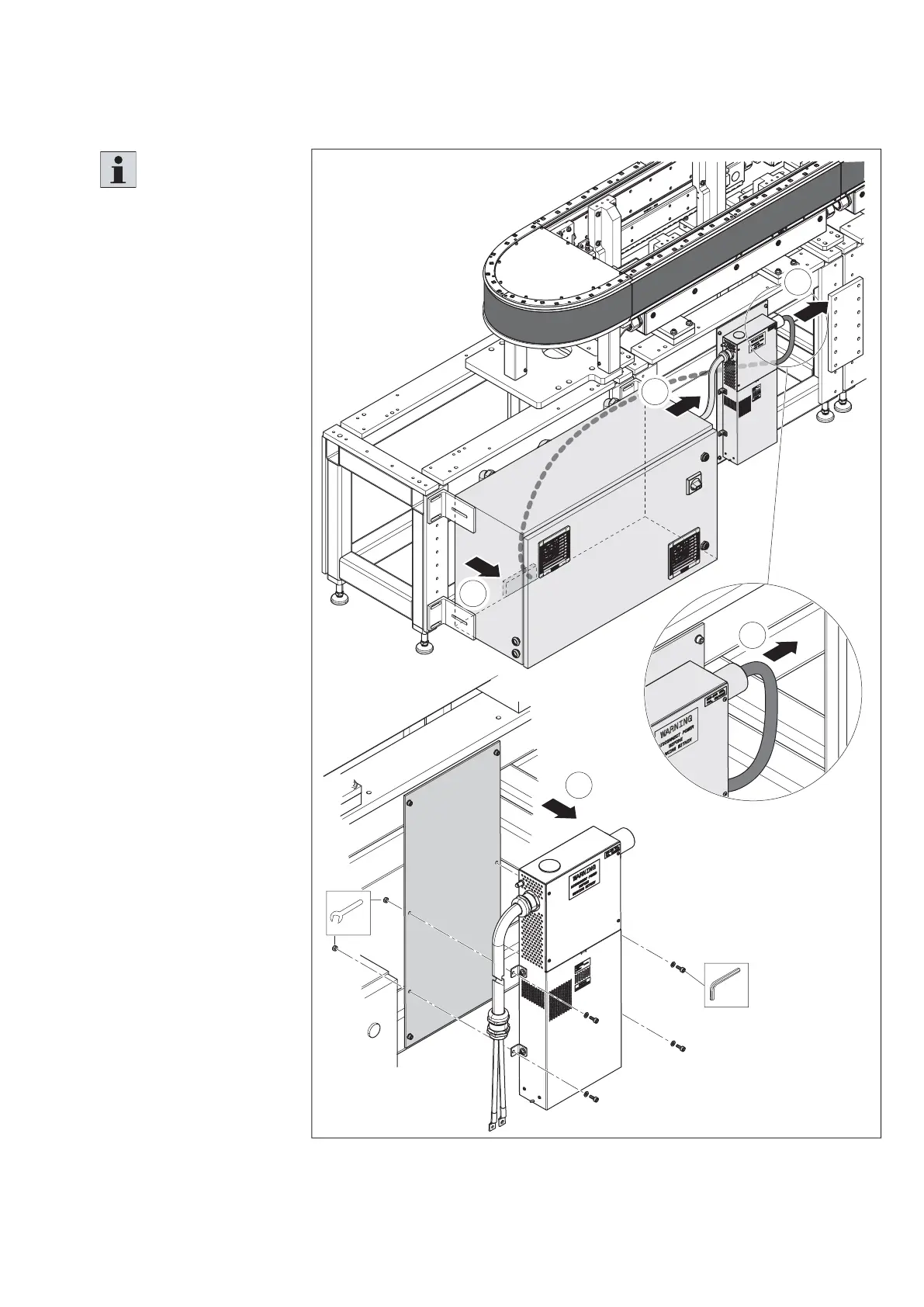

Fig. 101:
2
2
1
3
SW4
4x
557 186-90
M
D
=10 Nm
SW8
4x
1
Replacing the power supply
Please note:
• The power supply
connection lines must be
disconnected from the
system components and
not from the power supply.
• The 230 V power supply
connection can be
plugged in.
• The mounting plate of the
power supply does not
need to be removed.
1. Disconnect all power
supply connection
lines from the system
components.
2. Pull the plug connector
(230 V AC) out of the
connection socket.
3. Remove the power
supply from the
mounting plate.
 Install and connect the
new power supply in
reverse order.
