Bosch Rexroth ActiveMover - Assembling the EMC Cable Glands and Cable Guard Pipe

Installation 91/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
7.6.1 Assembling the EMC cable glands and cable guard pipe

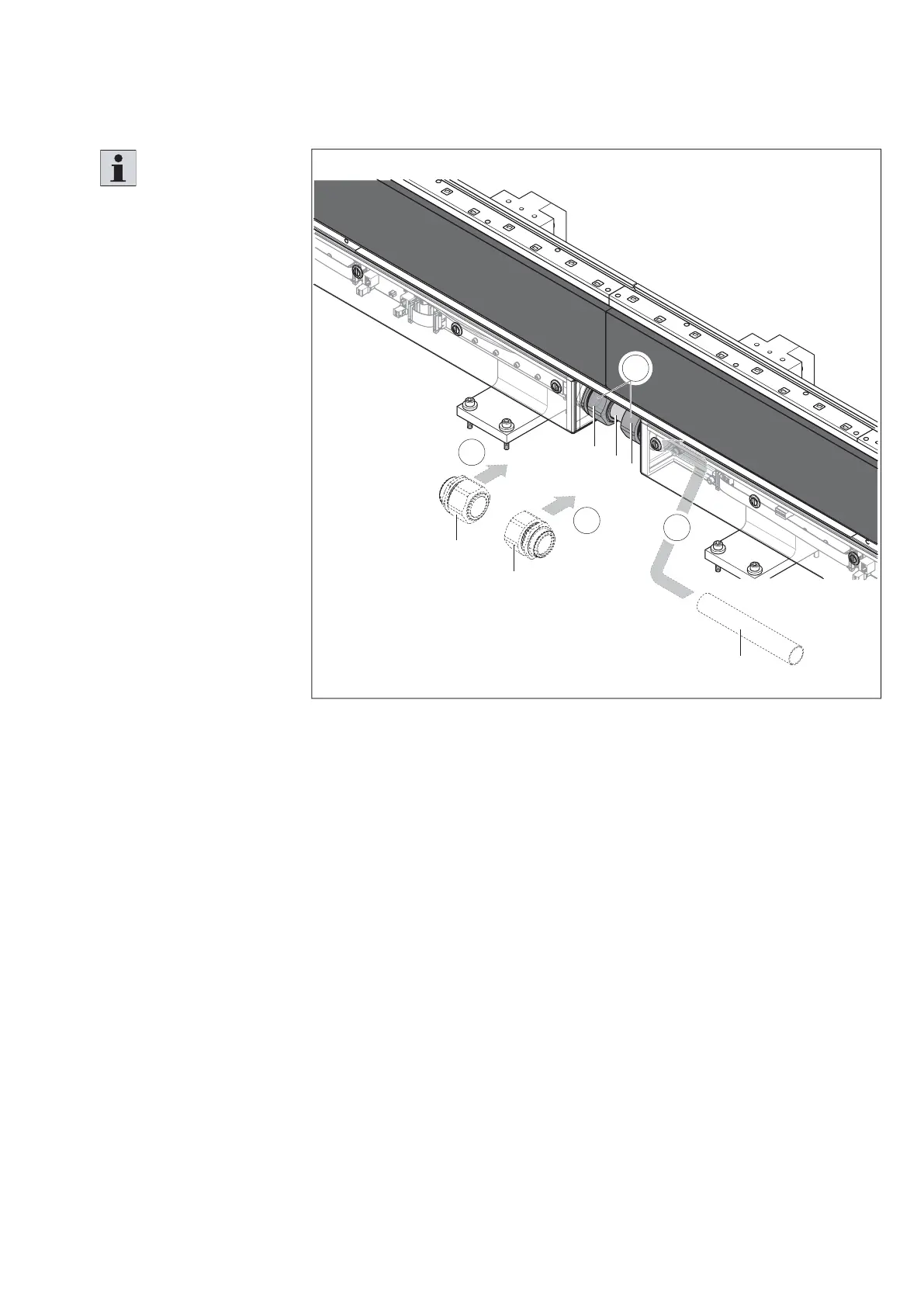

Fig. 65:
C
A
C
A
B
1
1
3
2
B
557 186-59
Assembling the EMC cable glands and cable guard pipe
Please note:
Use only the supplied cable
glands. One of the cable
glands has an EMC shield
connection.
A:
Cable gland with EMC
shield connection
B:
Cable gland
without EMC shield
connection
C:
Cable protective pipe
1. Assemble the cable
glands (A+B) on the
section/curve modules.
2. Push the cable
protective pipe (C)
into the cable glands
between the section
modules/curve modules.
3. Tighten the cable glands.
