7.5.13 Assembling and aligning the guide rails

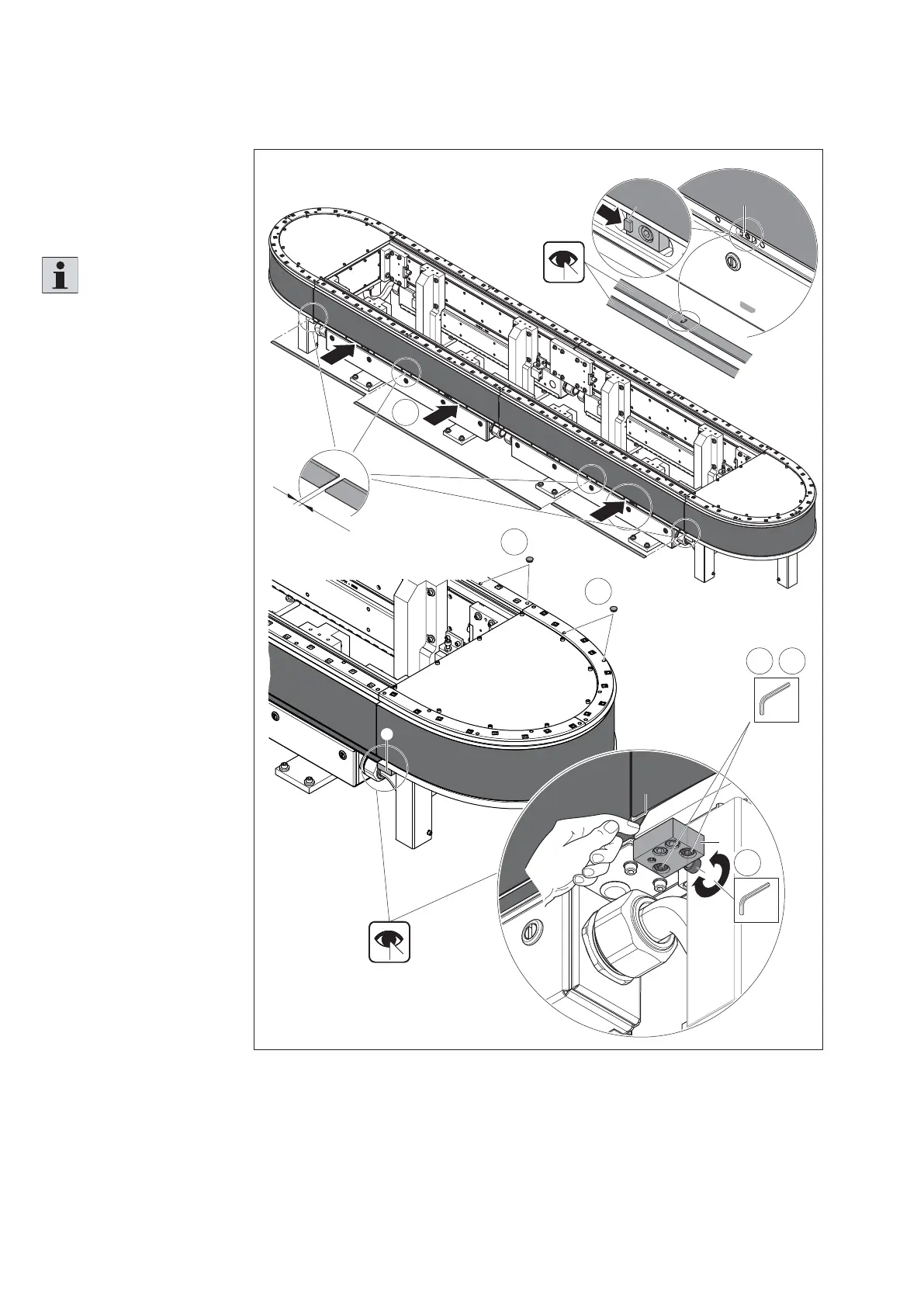

Fig. 59:
1
5
A
A
A
A
X
D
C
!
2 4
3
SW5
557 186-53
B
X
0,5 mm
C
SW8
10 x
5
10 x
Assembling and aligning the guide rails
1. Place the guide
rails (A) on the magnets
(B). Check the alignment
of the magnets (B) and
observe the coding (X).
Please note:
• The gap between the guide
rails must be 0.5 mm.
• The long guide
rails 1010 mm must
always be above the
joint between 2 section
modules.
• The short guide
rails 520 mm must always
be at the end of a section
module that connects
to a curve module.
• The guide rail of the
curve module cannot be
exchanged.
2. If the guide rail of the
section module is not
aligned with the guide
rail of the curve module,
loosen the screws on the
adjustment unit (C).
3. Turn the setting
screw (D) of the
adjustment unit until
no offset can be felt
between the guide rails.
4. Tighten the screws of
the adjustment unit (C).
5. Install the cover caps.
