7.6.3 Inserting the power supply line into section/curve module

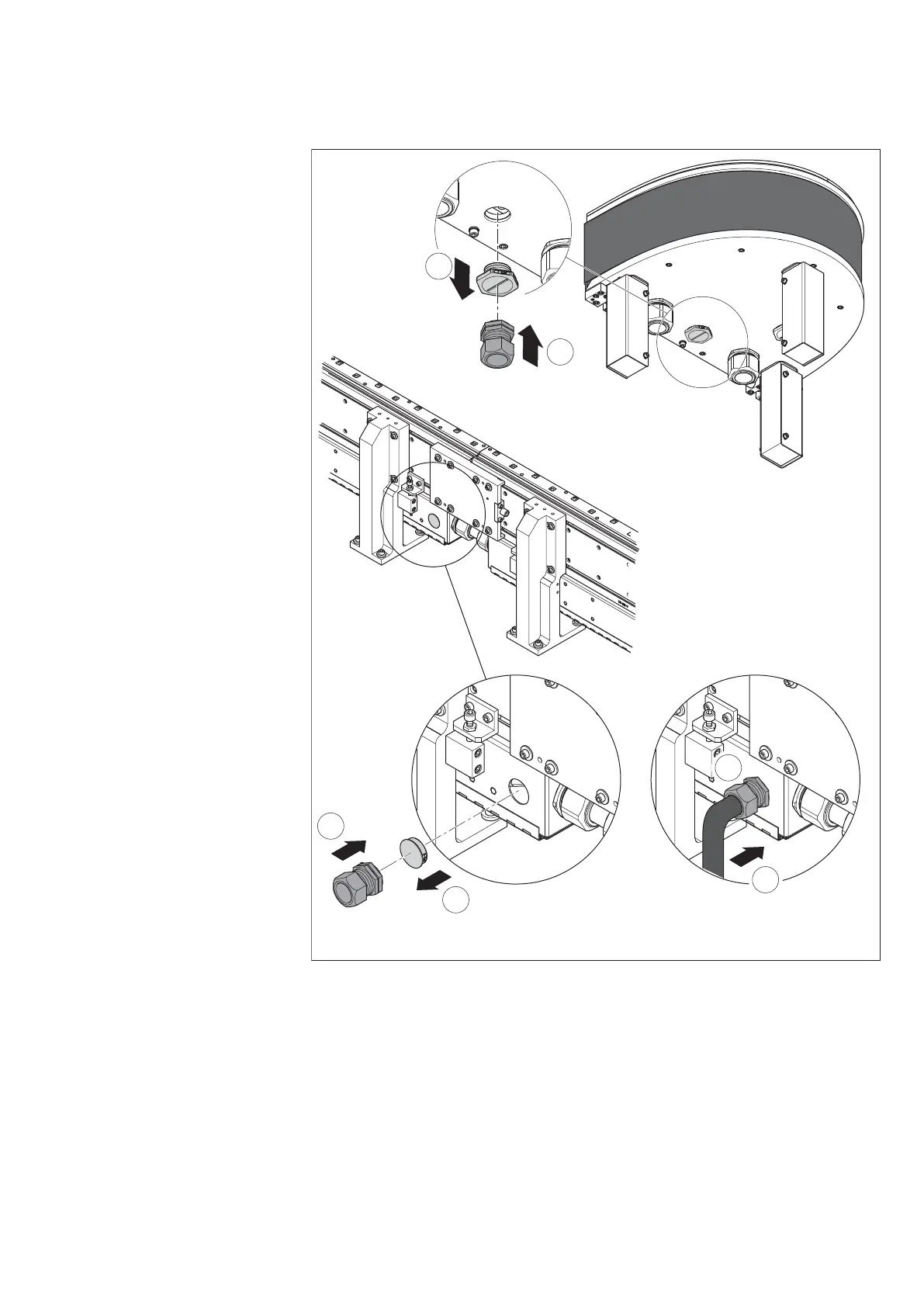

Fig. 67:
1
2
1
2
3
4
557 186-61
Inserting the power supply line into section/curve module
1. Remove the caps.
2. Assemble the cable
glands.
3. Lead the power supply
connection line through
the cable gland.
4. Tighten the cable glands.
