Maintenance and repair 127/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
10.2.8 Checking the measuring system (magnetic strip)
For removal of the measuring system, see chapter 10.4.5.
For cleaning the measuring system, see chapter 10.1.4.
Check the measuring system (magnetic strips) using a test foil.
All poles of the measuring system (magnetic strip) should be parallel to each
other and be clearly visible.

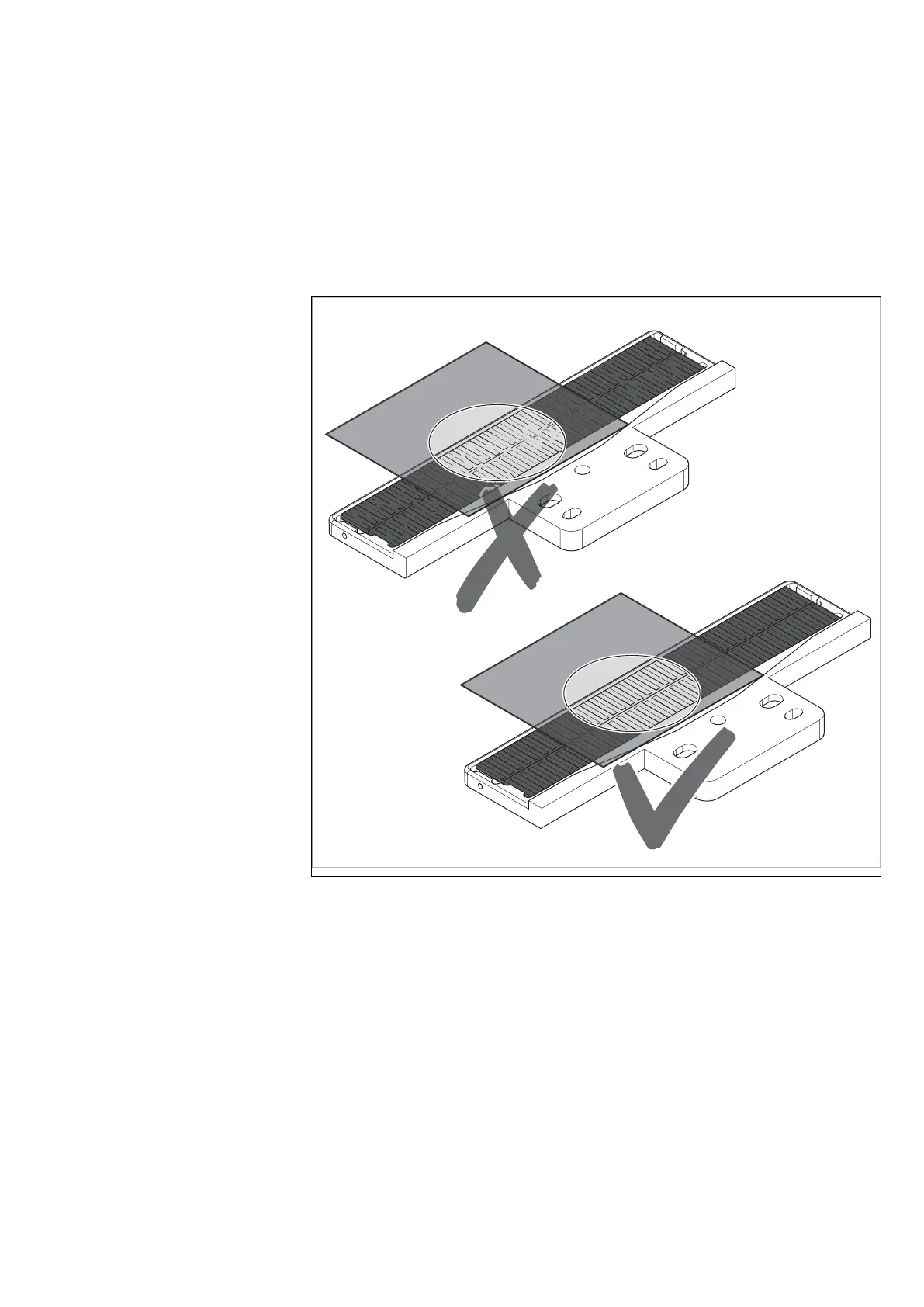

Fig. 87:
557 186-76
Checking the measuring system
If individual poles are not visible or appear damaged, replace the measuring system
(magnetic strip).
