152/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
10.4.21 Replacing the section/curve module main fuse

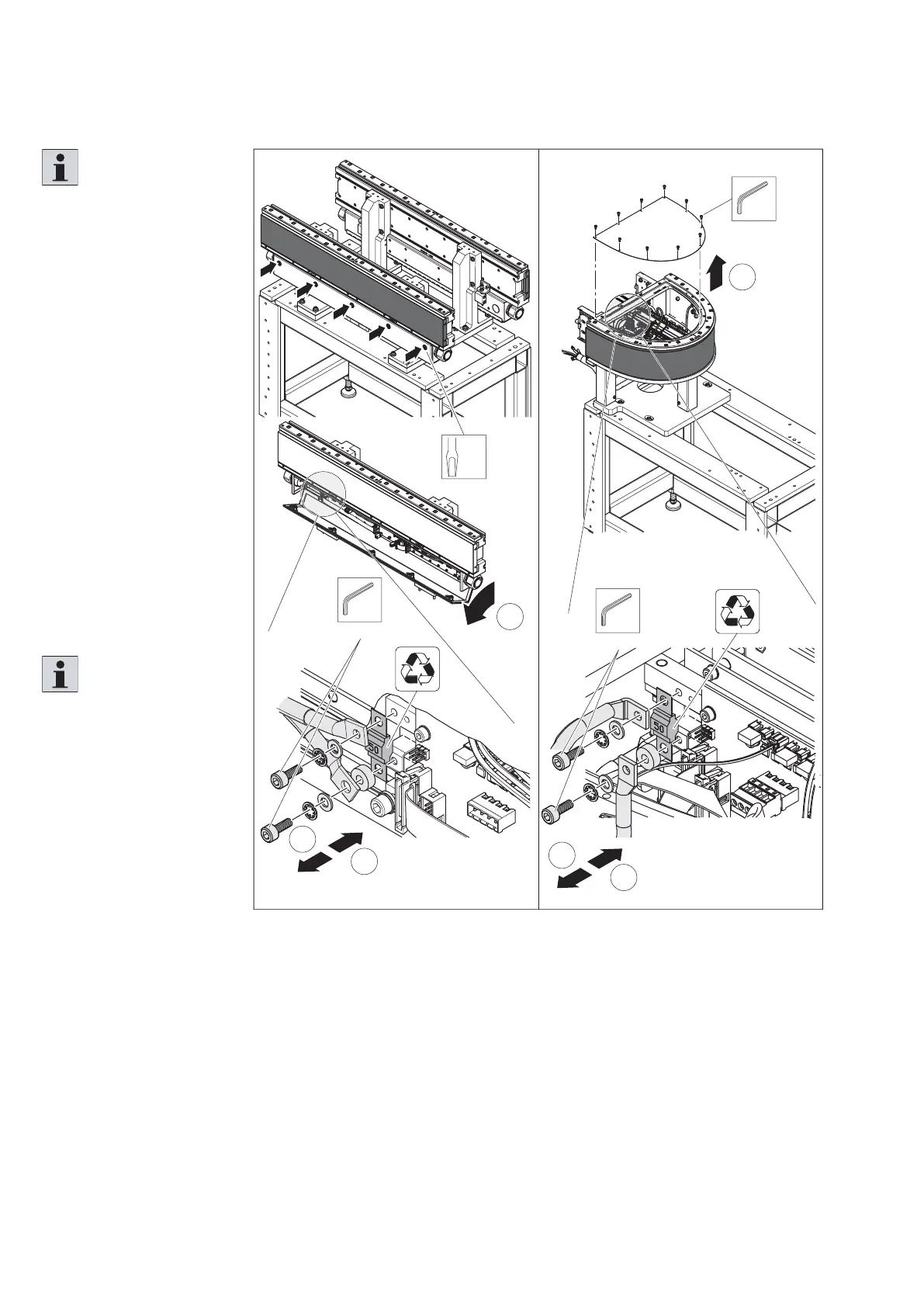

Fig. 110:
557 186-99
1
SW4
10x
1
PZ2
SW4
2x
SW4
2x
2
3
M
D
=10 Nm
M
D
=2,7 Nm
M
D
=2,7 Nm
2
3
Replacing the section/curve module main fuse
Please note:
The main fuse of the
section/curve module is
located on the left printed
circuit board (coil driver).
Necessary spare parts
• Main fuse section/curve
module 50 A
3 842 555 970
1. Open the protective fl ap
of the electronics box
of the section module
or disassemble the
protective cover of the
curve module.
2. Remove the fi xing screws
of the main fuse.
3. Install the new (50 A)
main fuse in reverse
order.
Please note:
The main fuse must be
installed using a screw,
tooth lock washer and
washer.
