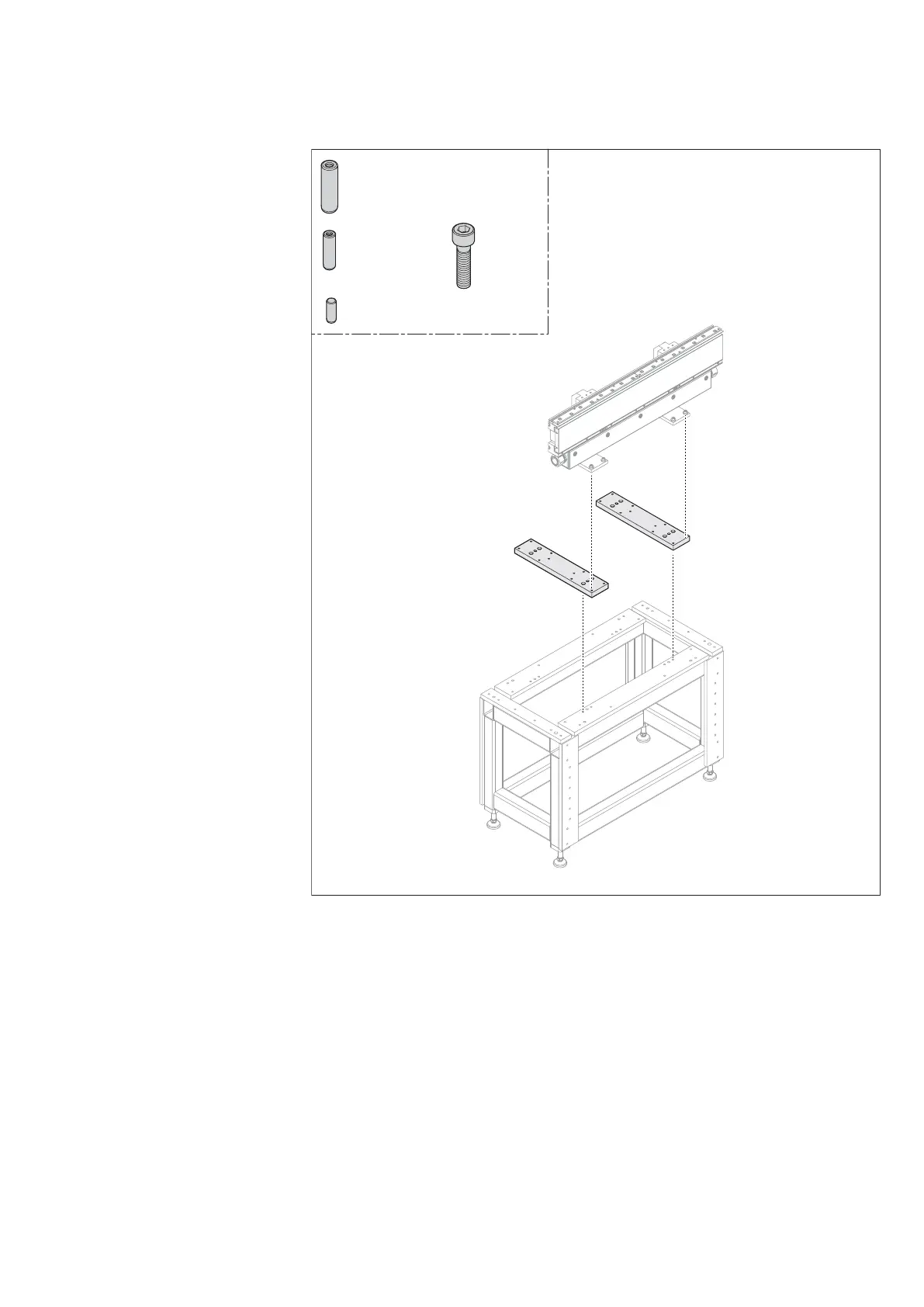

5.2.4 Fixing plates 3 842 559 454
Fig. 5:
2 x
ISO8375
12 x 40 – A – ST
8 x
ISO8734
6 x 20
8 x
M10 x 40
12.9
557 186-05
2 x
ISO8375
10 x 40 – A – ST
Connection kit 3 842 559 454
Fixing plates for mounting
two module holders
3 842 559 429 on a base
frame 3 842 559 450.
