Bosch Rexroth ActiveMover - Adjustment and Calibration; Checking and Adjusting the Measuring System Distance

Maintenance and repair 157/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
10.5 Adjustment and calibration
10.5.1 Checking and adjusting the measuring system distance

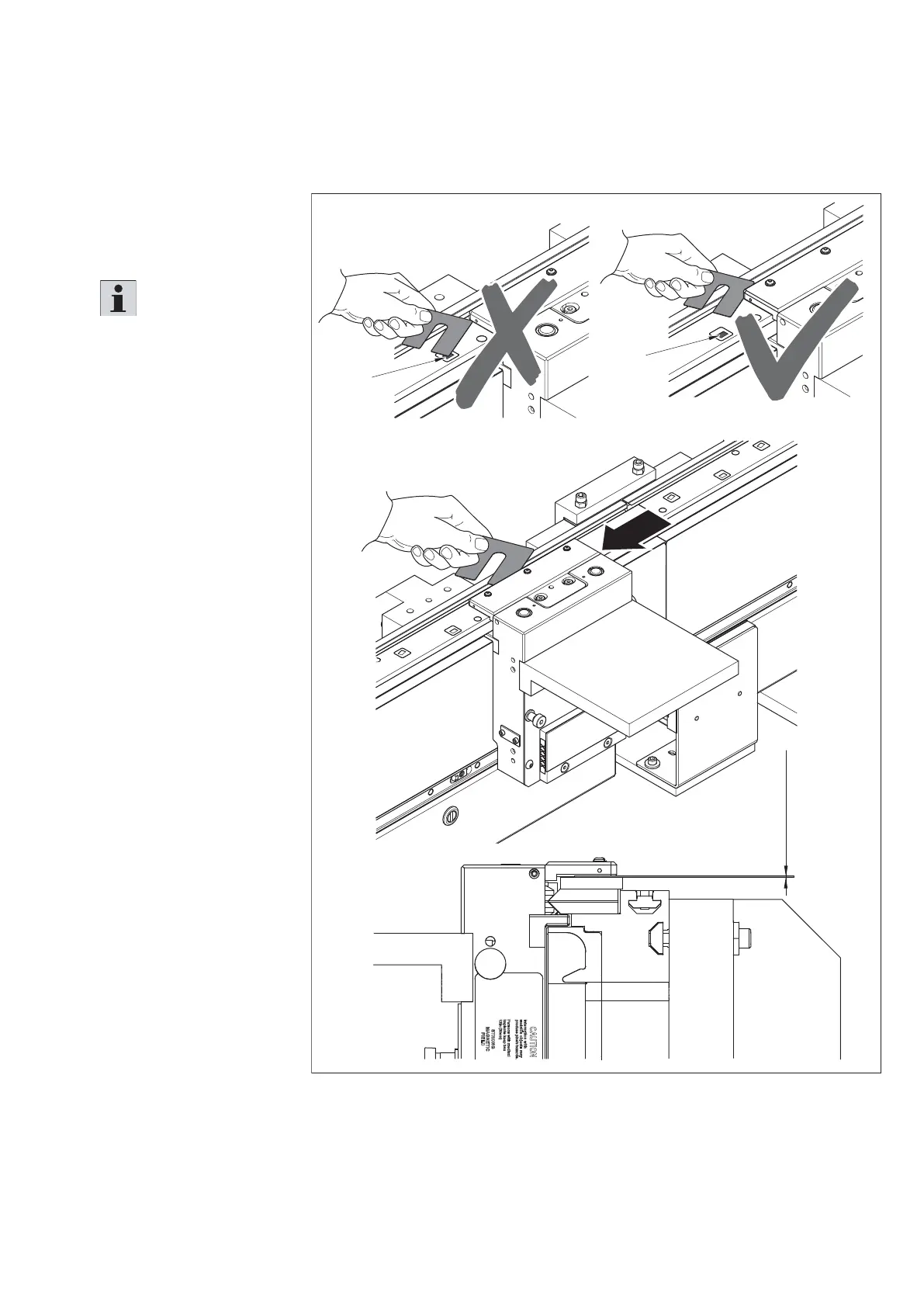

Fig. 115:
!
X = 0,5 m (±0,3 mm)
!
557 186-104
Checking the measuring system distance
Required tools
• Plastic feeler gage
0.2 … 0.8 mm
Please note:
Check before adjustment:
• the guide rollers according
to table 7 on page 124.
• the measuring system
according to table 7 on
page 124.
• the correct installation
of the measuring system
(see chapter 10.4.5).
1. Check the distance (X)
between measuring
system and sensor unit.
