8 Commissioning
8.1 Measurements before starting up the system for the fi rst time
NOTICE
When working at electrical systems, observe the 5 safety rules!
 De-energize.
 Secure against reactivation.
 Ensure absence of voltage on all poles.
 Ground and short-circuit.
 Cover or block off any adjacent live parts.
• Before the system is switched on for the fi rst time
• After replacement of a conveyor/curved unit
• After changes/additions to the system
• After replacement of power supply/power/fl at ribbon cables,
the following measurements must be carried out when de-energized:
8.1.1 Resistance between the motor cable connections

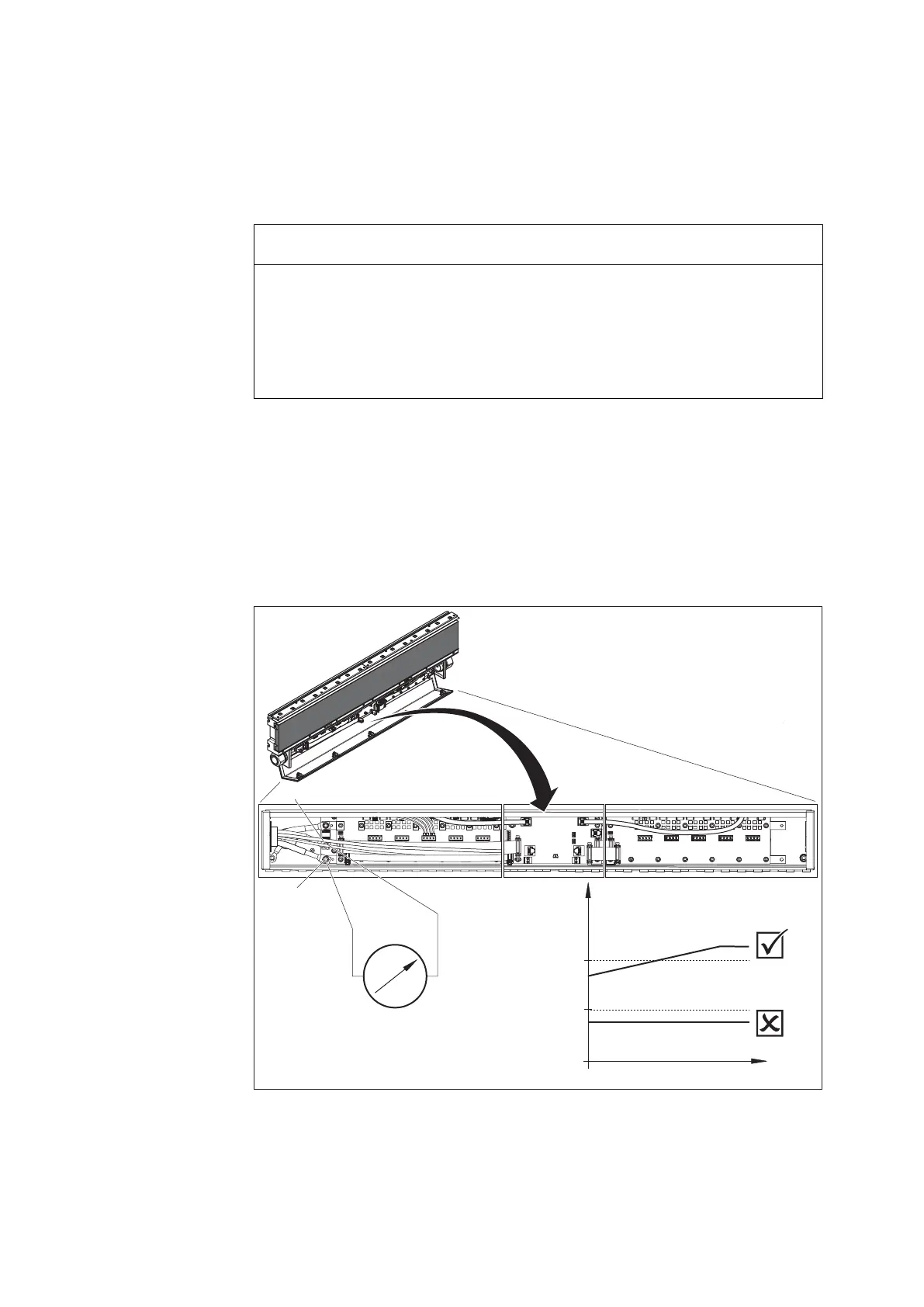

Fig. 82:
R
[Ω]
t
5
10
0
50
H
G
R
557 186-126
Resistance between the motor cable connections
G:
Motor cable
connection (28 V)
H:
Motor cable
connection (0 V)

Measurement OK

Short circuit present
 Troubleshooting
see chapter 11.1
