128/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
10.3 Maintenance
10.3.1 Lubricating the workpiece pallet
Lubricate the WT lubricating felt during assembly/commissioning with 5 to 10 drops
of oil. Thereafter, lubricate as required according to table 7 on page 124

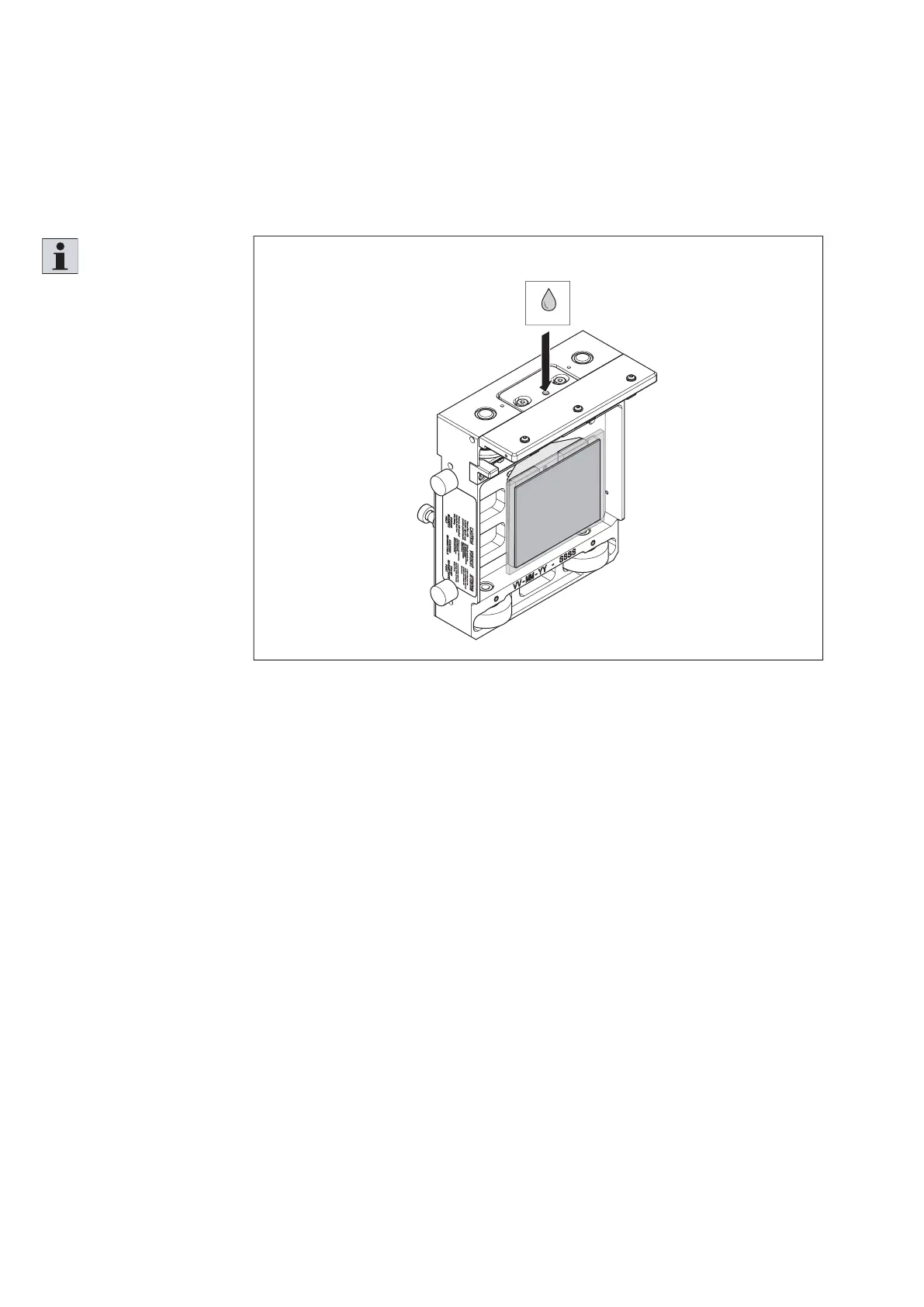

Fig. 88:
5 ... 10
No-Tox®HD
Food Grade
Oil 46
557 186-77
Lubricating the workpiece pallet
Please note:
The workpiece pallet must
not be disassembled for
lubrication.
