Bosch Rexroth ActiveMover - Resistance between Motor Cable (0 V) and Ground (Base Frame)

Commissioning 111/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG

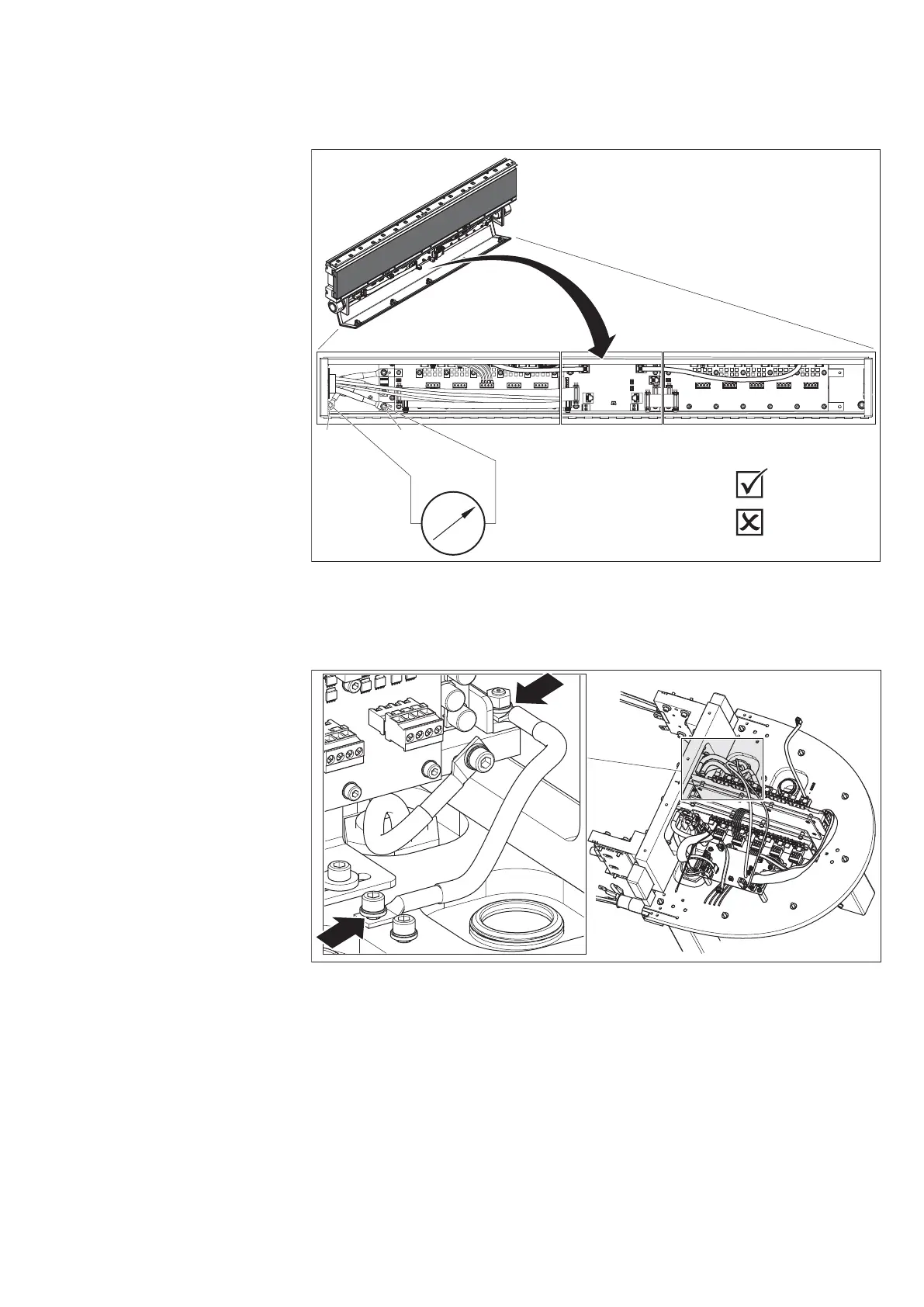

8.1.2 Resistance between motor cable (0 V) and ground (base frame)
Fig. 83:
R < 1 Ω
R > 1 Ω
50
HF
R
557 186-127
Resistance between motor cable (0 V) and housing (section/curve modules)
Troubleshooting
Fig. 84:
557 186-128
Troubleshooting: No connection between motor cable (0 V) and housing
(section/curve modules)
F:
Grounding cable
connection (housing)
H:
Motor cable
connection (0 V)

Measurement OK

The housing is not
connected to the
motor ground
 Check the ground cable
connection in the curve
modules.
