Bosch Rexroth ActiveMover - Curve Module Connection Kit 3 842 559 453

20/188 About this product
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
5.2.3 Curve module connection kit 3 842 559 453

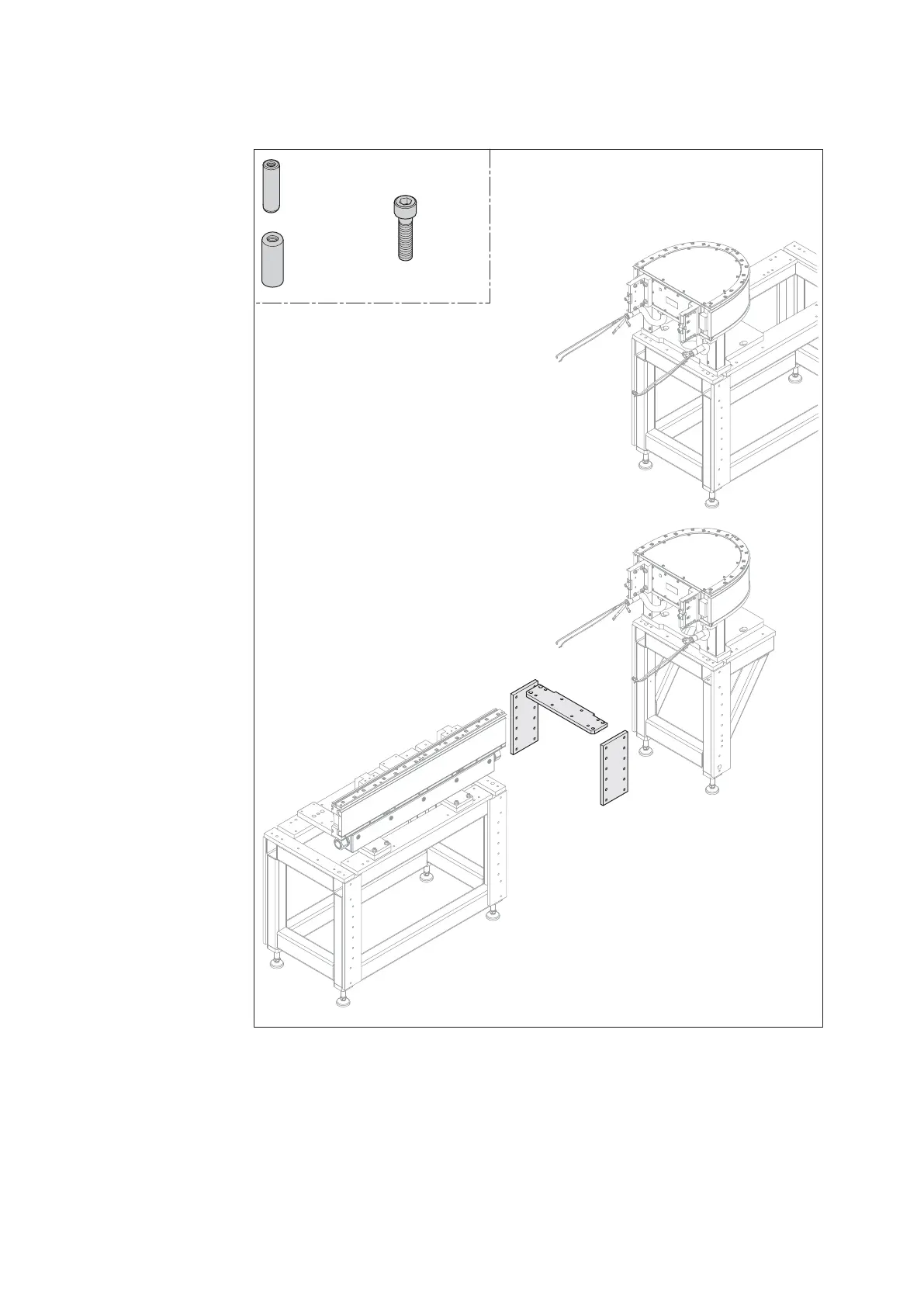

Fig. 4:
2x
ISO8375
12 x 40 – A – ST
2x
ISO8375
16 x 40 – A – ST
32x
M10 x 40
12.9
557 186-04
Connection kit 3 842 559 453
Connection kit for
mechanical connection of
a base frame 3 842 559 450
with section module with
a base frame 3 842 559 450
or 3 842 559 451 with curve
module.
