Maintenance and repair 147/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
10.4.18 Replacing the printed circuit board (gateway) (section module)

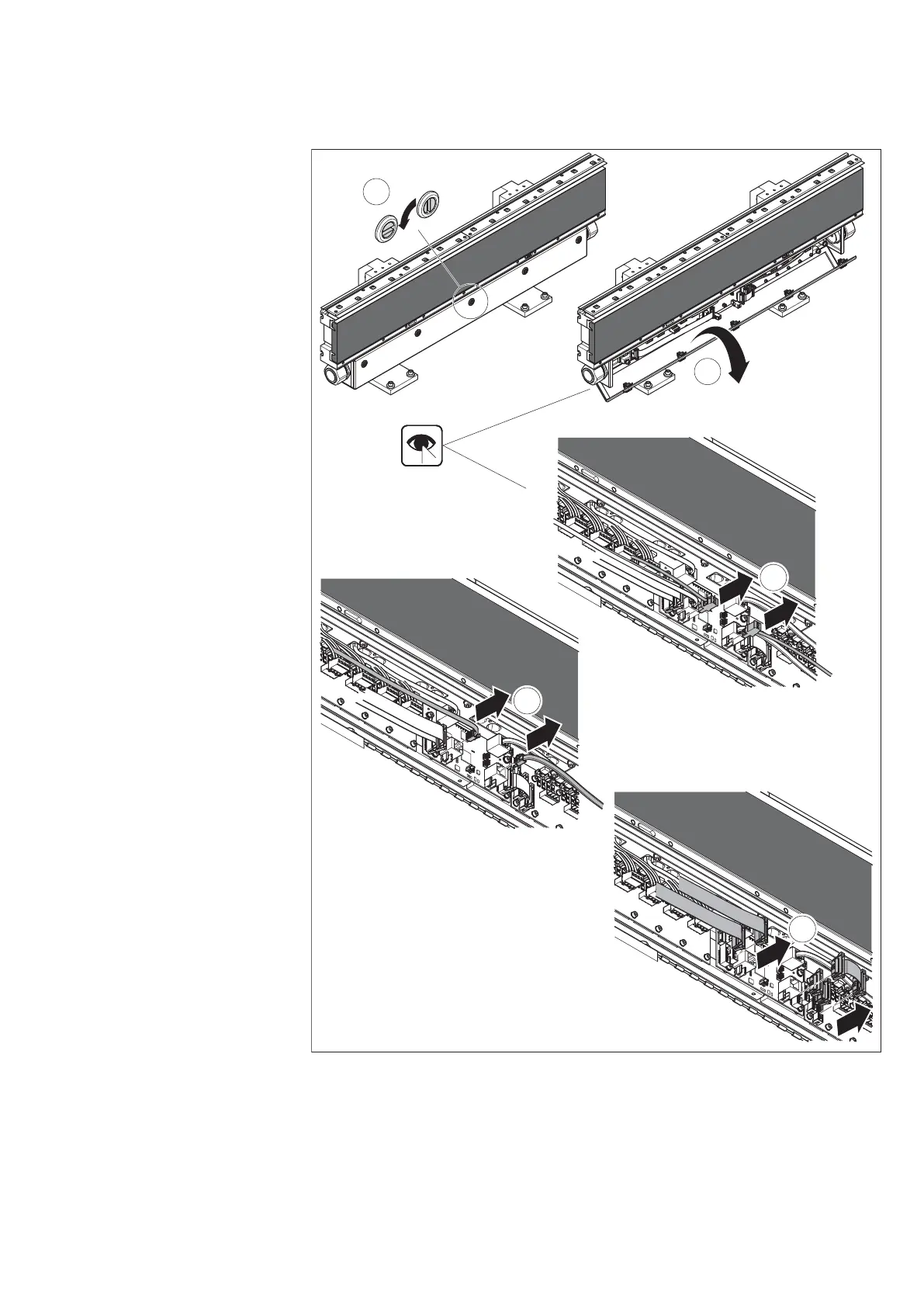

Fig. 105:
557 186-94
1
1
5x
3
2
4
Replacing the printed circuit board (gateway) (section module)
Necessary spare parts
• Printed circuit board
(gateway)
3 842 555 968
1. Open the protective fl ap
of the section module
electronics box.
2. Unplug the 2 plugs of the
24 V supply.
3. Unplug the network
cable (1 and 2)
4. Unplug the 4 ribbon
cables.
