148/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04

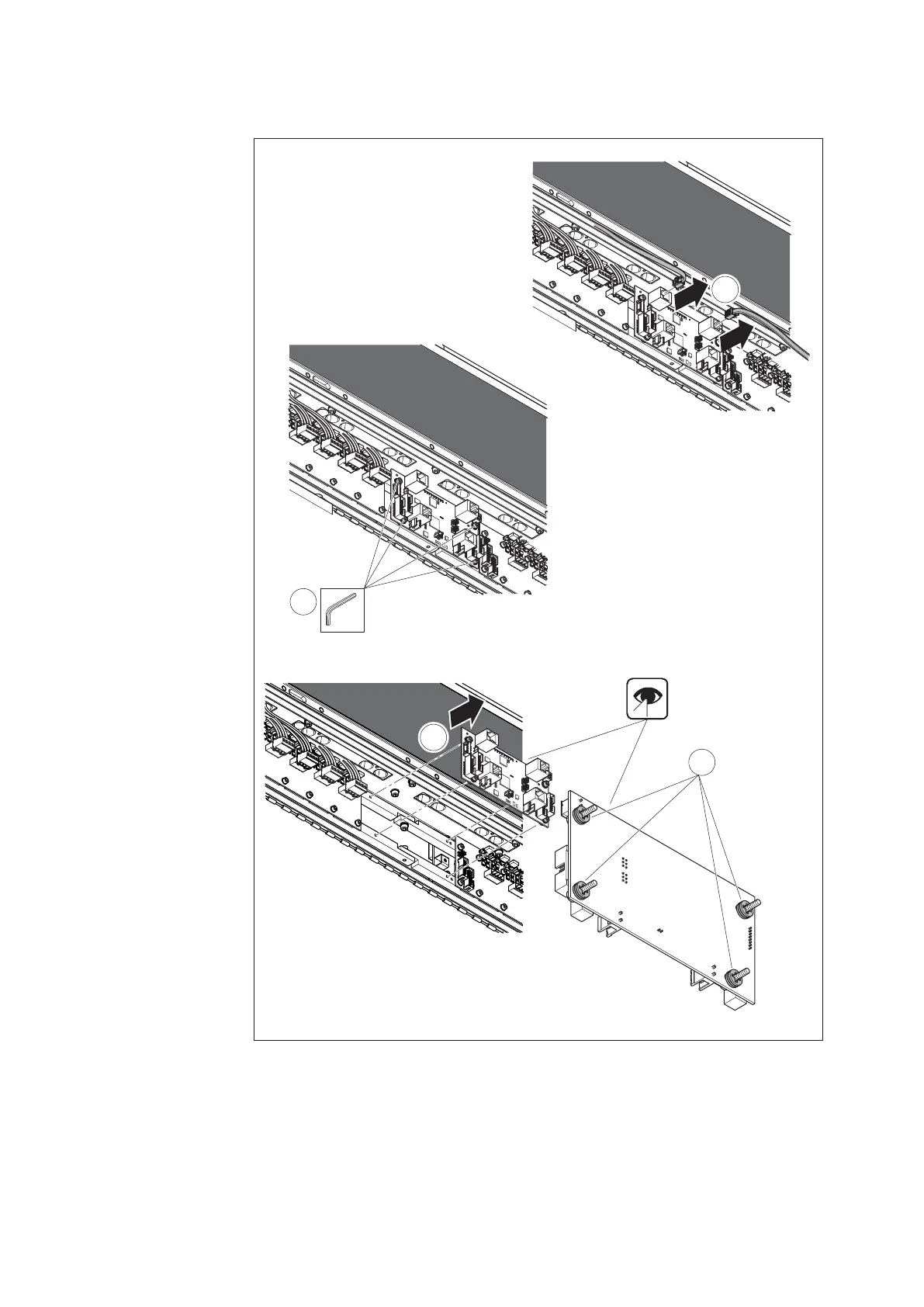

Fig. 106:
557 186-95
8
6
SW3
4x
7
5
M
D
=2 Nm
Replacing the printed circuit board (gateway) (section module)
5. Disconnect the 2
encoder cables.
6. Loosen the 4 fi xing
screws. Do not remove
the screws completely!
7. Remove the printed
circuit board (gateway).
8. Check that there are
3 plastic discs on all 4
fi xing screws of the new
printed circuit board
(gateway).
 Install the new printed
circuit board (gateway)
in reverse order.
