Bosch Rexroth ActiveMover - Control Cabinet 3 842 564 861 and 3 842 564 864

42/188 About this product
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
5.2.12 Control cabinet 3 842 564 861 and 3 842 564 864

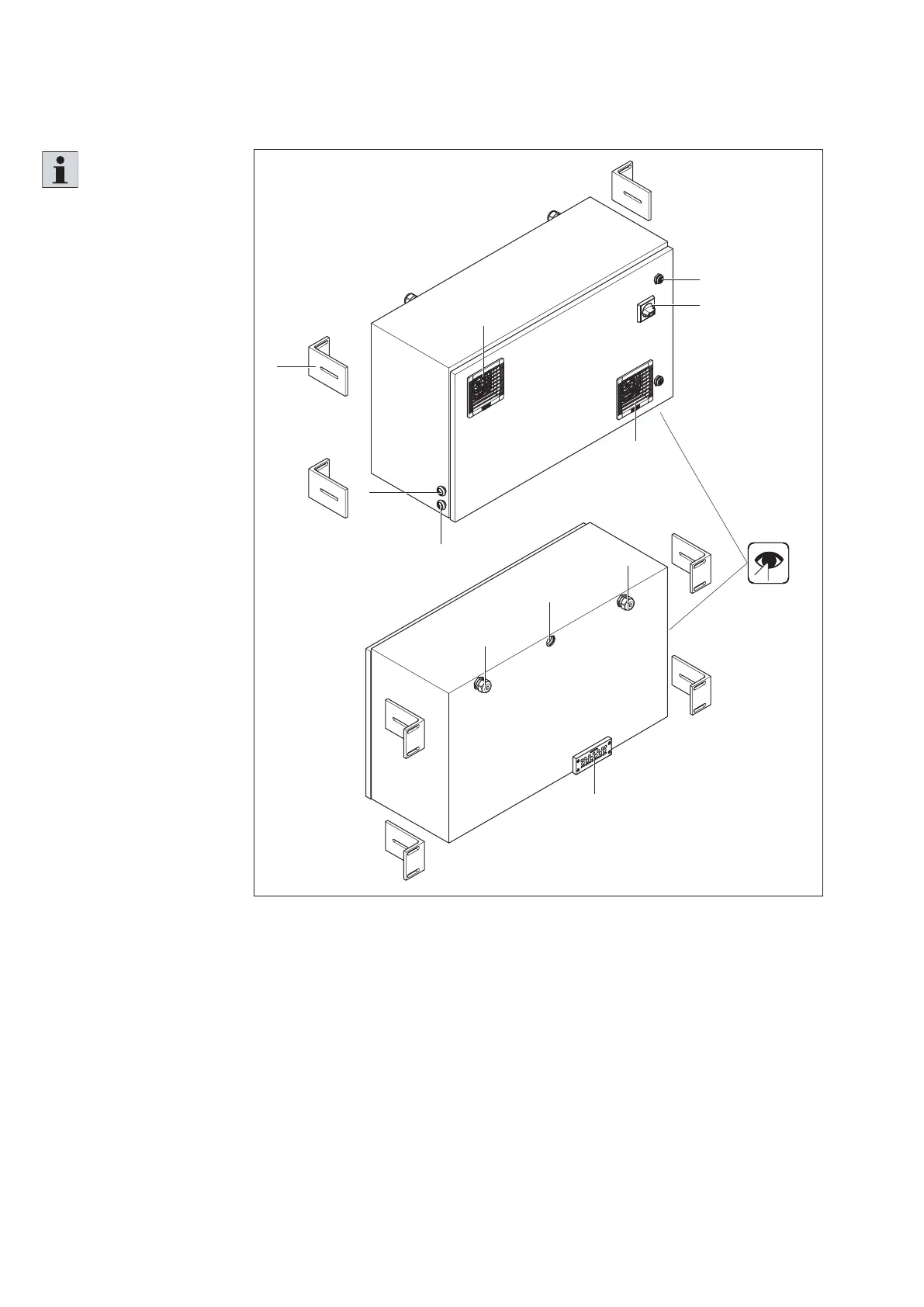

Fig. 21:
557 186-21
G
F
E
D
C
B
J
I
H
K
A
Control cabinet
Please note:
• For information on the
electrical connection,
see chapter 7.6.14 and
7.6.19.
• The mounting brackets
are loosely attached to the
control cabinet.
• The mounting holes for
the mounting brackets
must be prepared by the
customer on the control
cabinet and base frame.
A:
Mounting bracket (4x)
B:
Door lock (2x)
C:
Main switch
D:
Fan
E:
PLC controller
connection
F:
AMpro connection
G:
Filter
H:
Power port
I:
Port connection kit
3 842 559 449
J:
PLC controller
connection (optional)
K:
Power supply
connection
