10.5.8 Adjusting the secondary measuring system

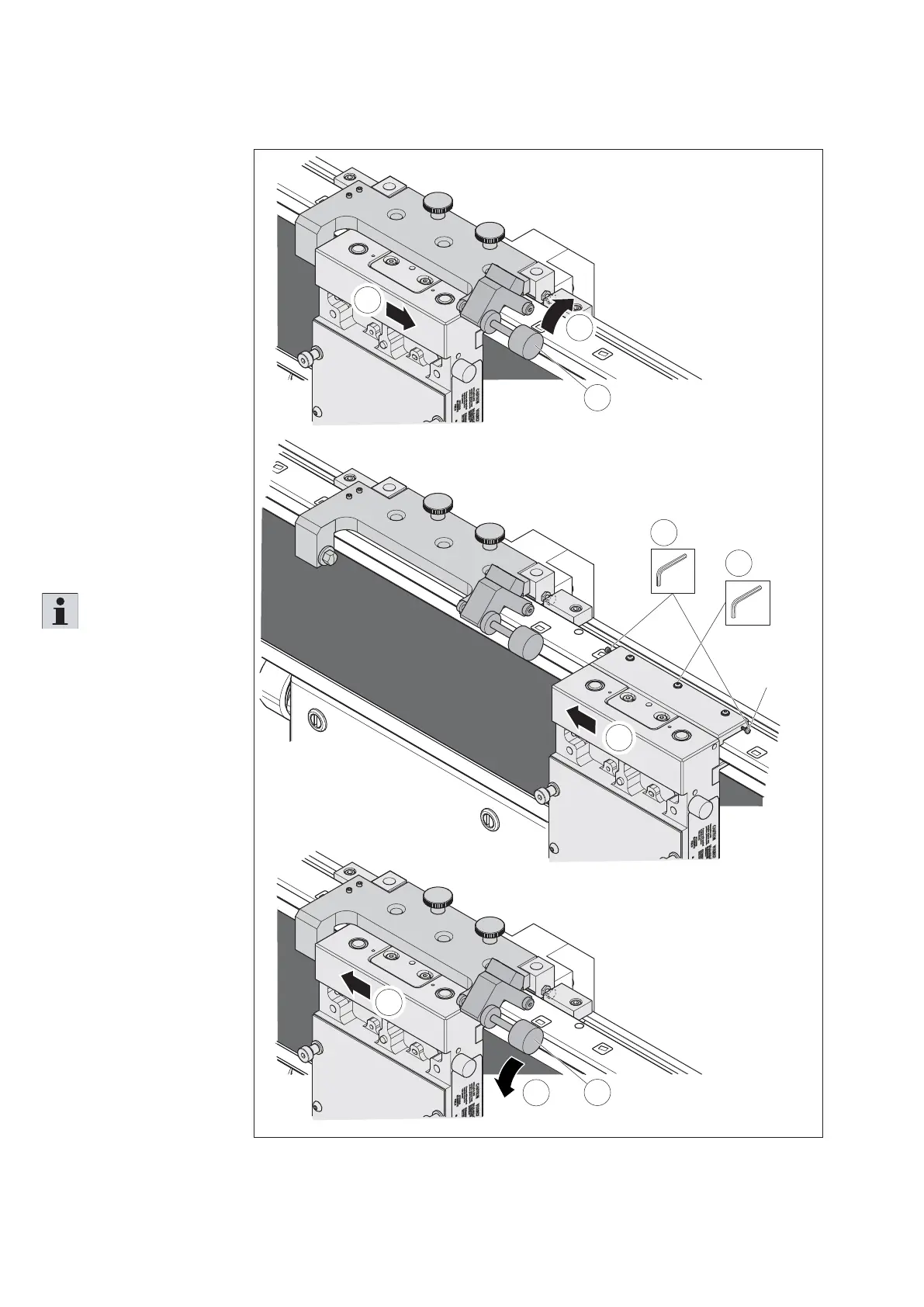

Fig. 130:
2
3
1
6
8
7
SW2
M2,5 x 10
4
3x
5
SW2
6
557 186-119
Adjusting the secondary measuring system (1)
In this procedure, the
secondary measuring
system is adjusted with the
primary measuring system.
Perform this procedure if:
• positioning errors occur
on a WT and the primary
measuring system has
already been adjusted.
1. After adjusting the
primary measuring
system, loosen the
knurled screw.
2. Fold the knurled screw
upwards.
3. Push the WT to the right.
4. Slightly loosen the screws
on the measuring system.
5. Mount 2 screws as
adjustment aid.
Please note:
Do not tighten the auxiliary
screws too fi rmly. This could
bend the measuring system.
6. Carefully move the
reference WT under
the reference system.
The WT must not hit the
reference system!
7. Fold the knurled screw
downwards.
8. Slightly press the WT to
the left and tighten the
knurled screw lightly.
