94/188 Installation
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
7.6.4 Connecting grounding and power cables (28 V)
(from left section/curve module)

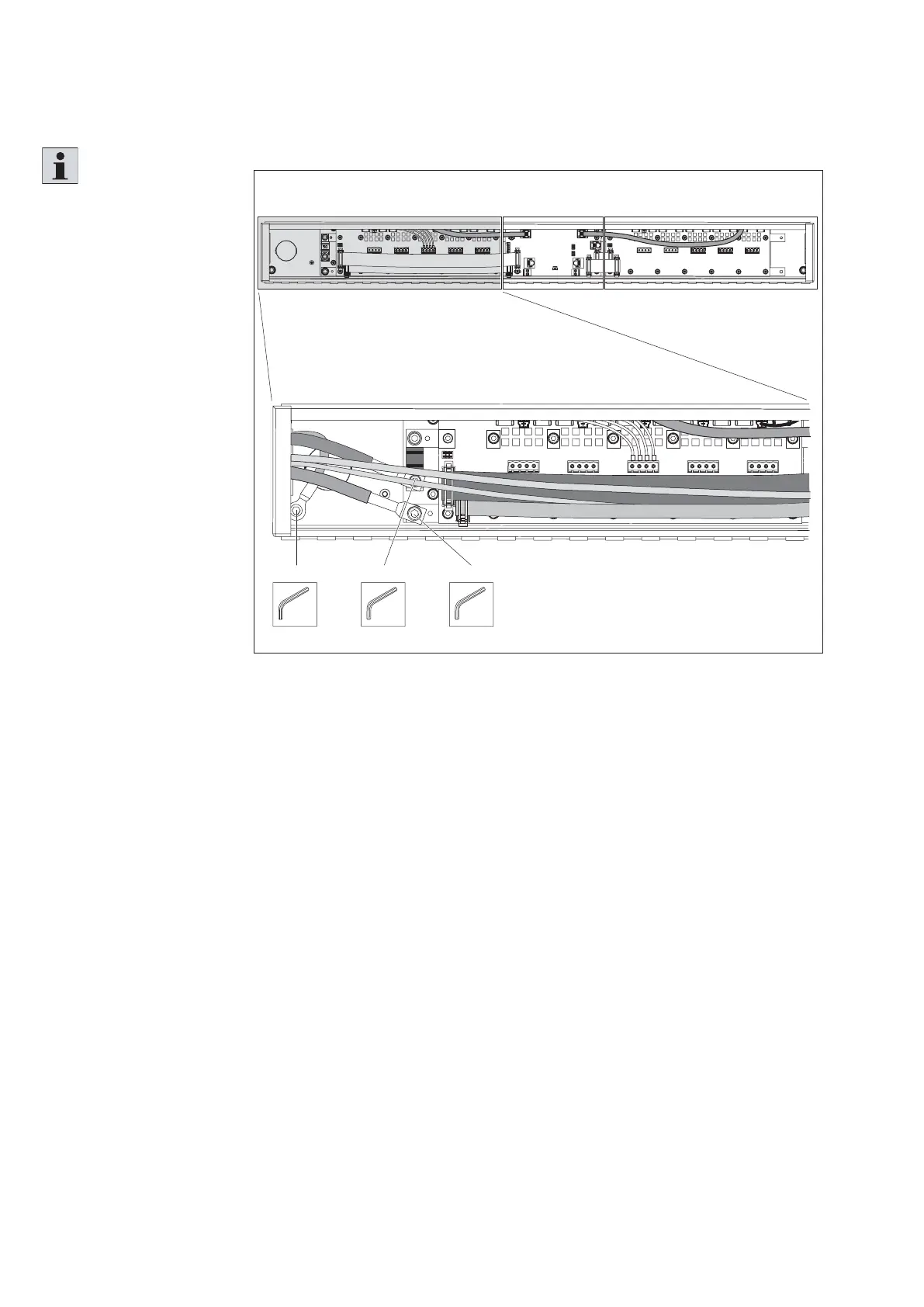

Fig. 68:
557 186-62
50
G HF
SW5
M
D
=11 Nm
SW4
M
D
=2,7 Nm
SW5
M
D
=11 Nm
Connecting grounding and power cables (from left section/curve module) without
connected power supply
Please note:
• The connection of an
adjacent curve module is
the same as connecting an
adjacent section module.
• For further information on
the electrical connection,
please refer to the circuit
diagram included in the
scope of delivery.
1. Connect the grounding
cable (YE/GN) to the
housing (F).
2. Connect the power
cable (28 V DC, blue)
to terminal G.
3. Connect the power cable
(0 V, blue/white)
to terminal H.
