Bosch Rexroth ActiveMover - Assembling the Curve Module on a Base Frame

64/188 Installation
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
7.5.6 Assembling the curve module on a base frame

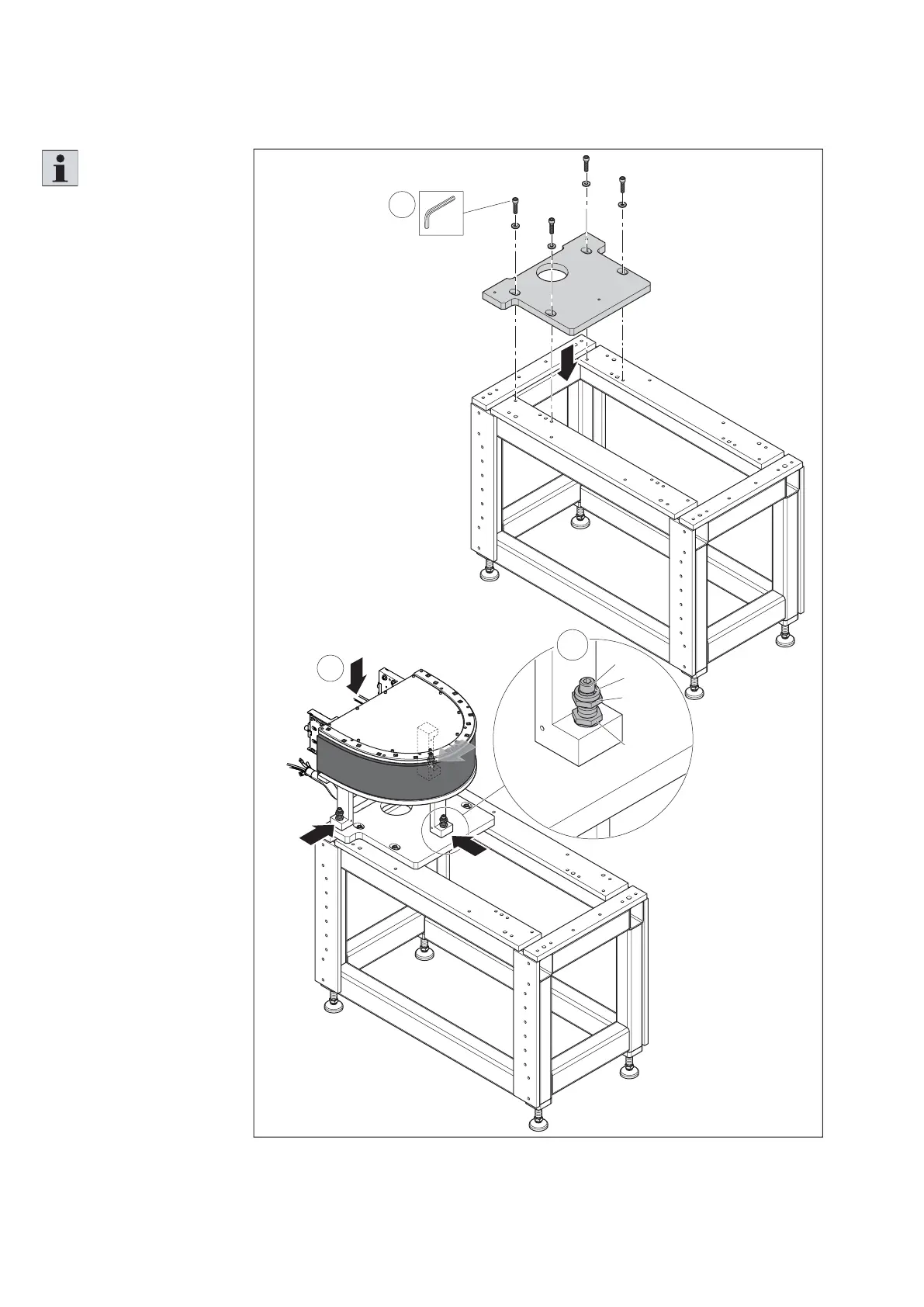

Fig. 40:
1
SW8
4x
2
557 186-39
3
A
C
D
B
M
D
=80 Nm
Assembling the curve module on a base frame (1)
Please note:
• The assembly must be
carried out on an already
aligned system section
at the fi nal use position
(see fi g. 32 on page 56).
• The assembly on a short
base frame is identical.
A short base frame
3 842 559 451 must
already be mounted on a
base frame 3 842 559 450
(see fi g. 32 on page 56).
1. Assemble the fi xing plate
of the curve module on
the base frame.
2. Position the curve
module on the fi xing
plate. Only tighten the
screws loosely.
3. Assemble one setting
screw loosely on each
curve module holder.
A:
Fixing screw M8 x 75
B:
Spring washer M6
C:
Setting screw
D:
Lock nut
