Installation 63/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG

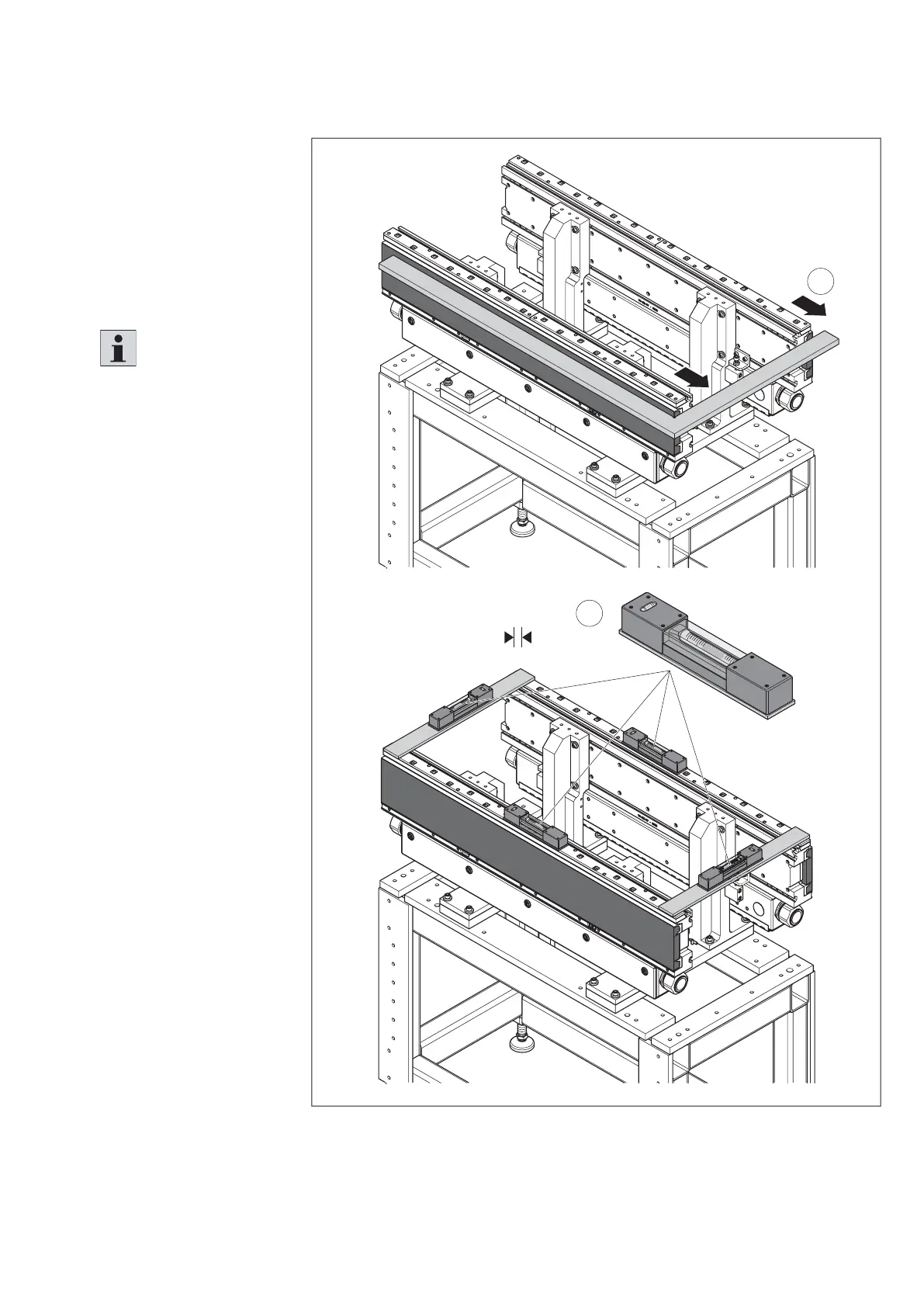

Fig. 39:
17
557 186-38
18
= 0,02 mm/m
Checking the alignment of the section modules
17. Check the alignment of
both section modules on
the front side.
18. Check the alignment of
both section modules
longitudinally and
crosswise
using a
machine water balance.
Please note:
If the alignment of the
section modules is not
correct, check again the
alignment of the base
frame and the assembly
dimensions of the section
module from fi g. 36.
If necessary, repeat/check
the complete assembly.
