Installation 109/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
7.6.19 Line voltage
WARNING
High electrical voltage!
Risk of severe injury or death from electric shock.
Switch off the main power switch (OFF position).
Secure the main power switch against unintended reactivation.

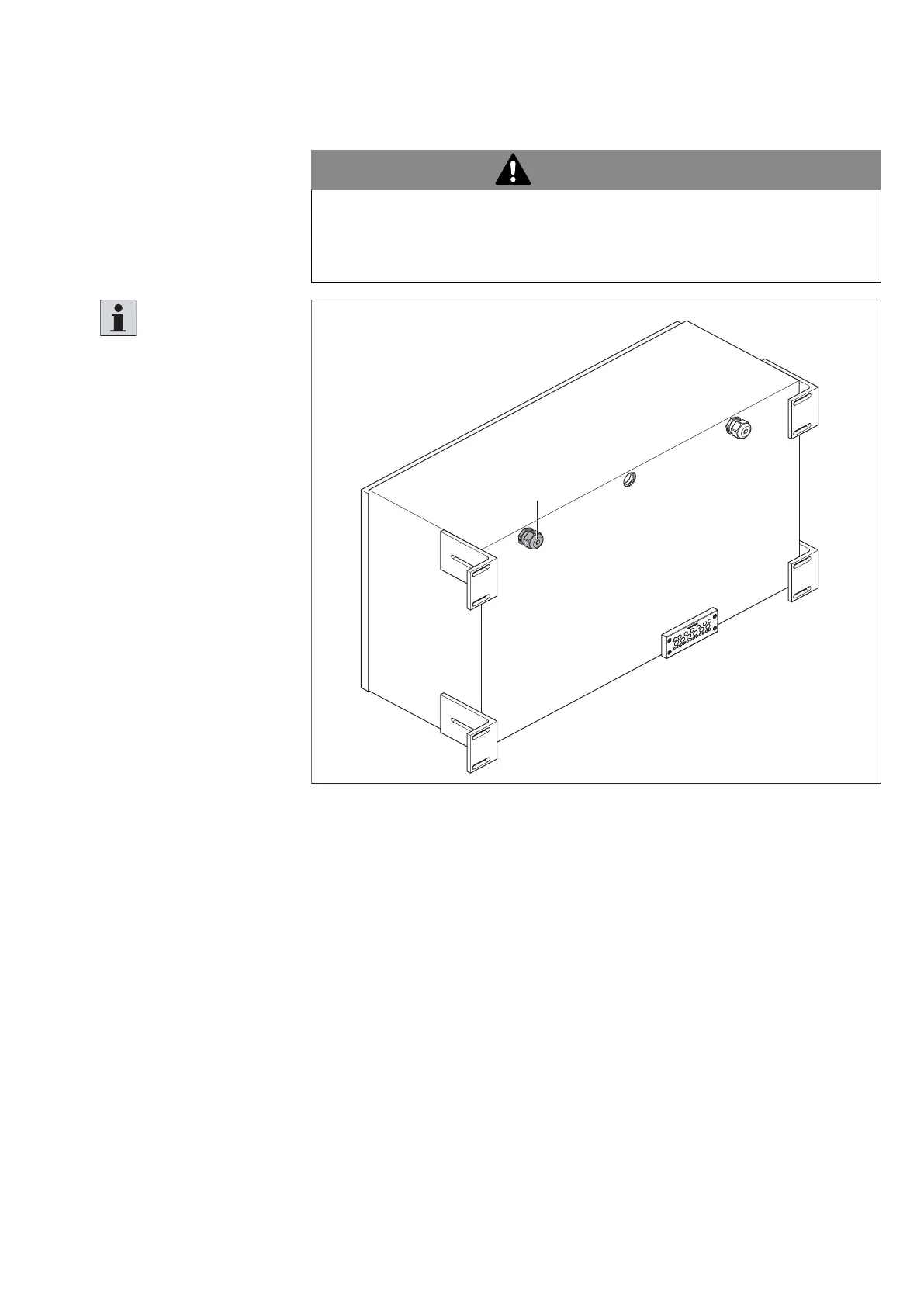

Fig. 81:
557 186-75
A
Cable gland for supply voltage connection cable
Please note:
• For further information on
the electrical connection,
please refer to the circuit
diagram included in the
scope of delivery.
• The connection cable is
not included in the scope
of delivery.
• If a control cabinet not
supplied by Bosch Rexroth
is used, an all-pole line
fi lter must be provided.
1. Guide the connection
cable through the cable
gland on the rear of the
control panel (A).
2. Connect the supply
voltage according to the
circuit diagram.
3. Screw down the cable
gland.
