104/188 Installation
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
7.6.14 Connect power supply in the control cabinet

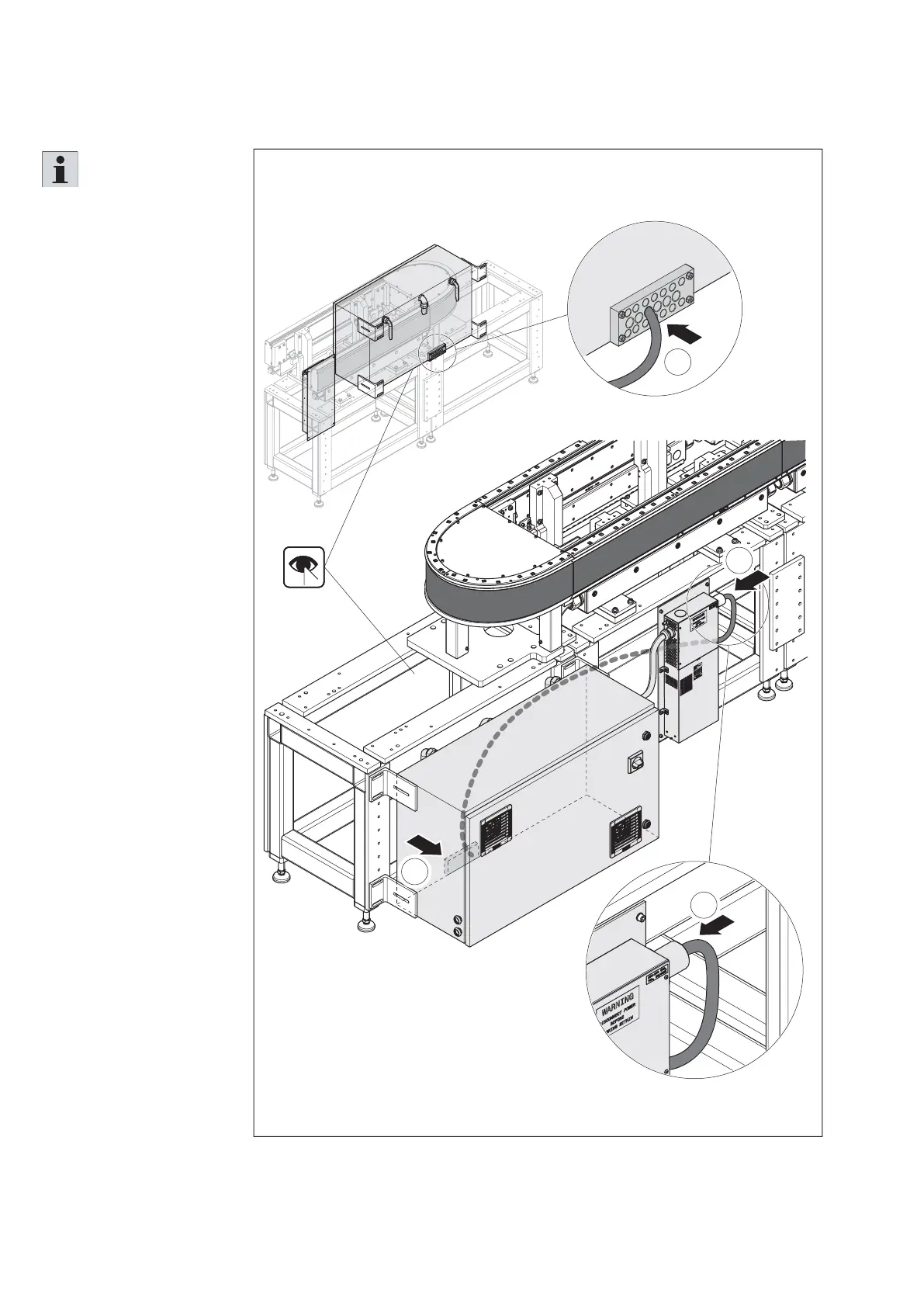

Fig. 77:
1
3
3
1
557 186-71
Connect power supply in the control cabinet
Please note:
For further information on
the electrical connection,
please refer to the circuit
diagram included in the
scope of delivery.
Required accessories
• 230 V connection line
(not included in the scope
of delivery, see catalog for
specifi cations)
1. Insert the 230 V
connection line of the
power supply into the
control cabinet.
2. Connect the connection
line according to the
circuit diagram.
3. Connect the plug
connector (230 V AC)
of the connection line to
the power supply.
