144/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
10.4.16 Replacing the printed circuit board (coil driver) (section module)

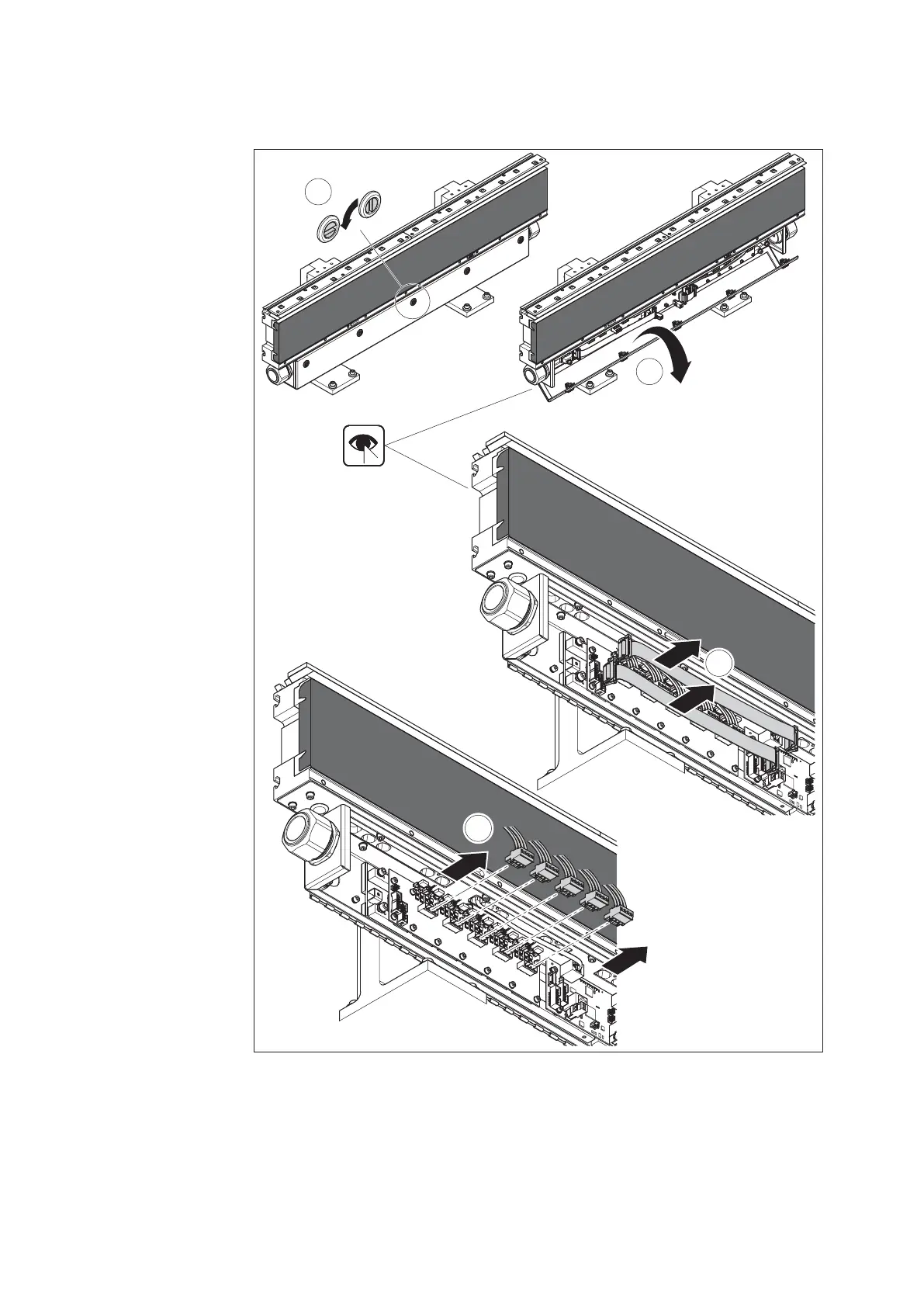

Fig. 102:
557 186-91
1
1
5x
2
3
Replacing the printed circuit board (coil driver) (section module)
Necessary spare parts
• Printed circuit board
(coil driver)
3 842 555 967
1. Open the protective fl ap
of the section module
electronics box.
2. Unplug the 2 ribbon
cables from the printed
circuit board.
3. Unplug the 5 coil
connectors.
