Bosch Rexroth ActiveMover - Replacing Discharge Brushes

132/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
10.4.4 Replacing discharge brushes

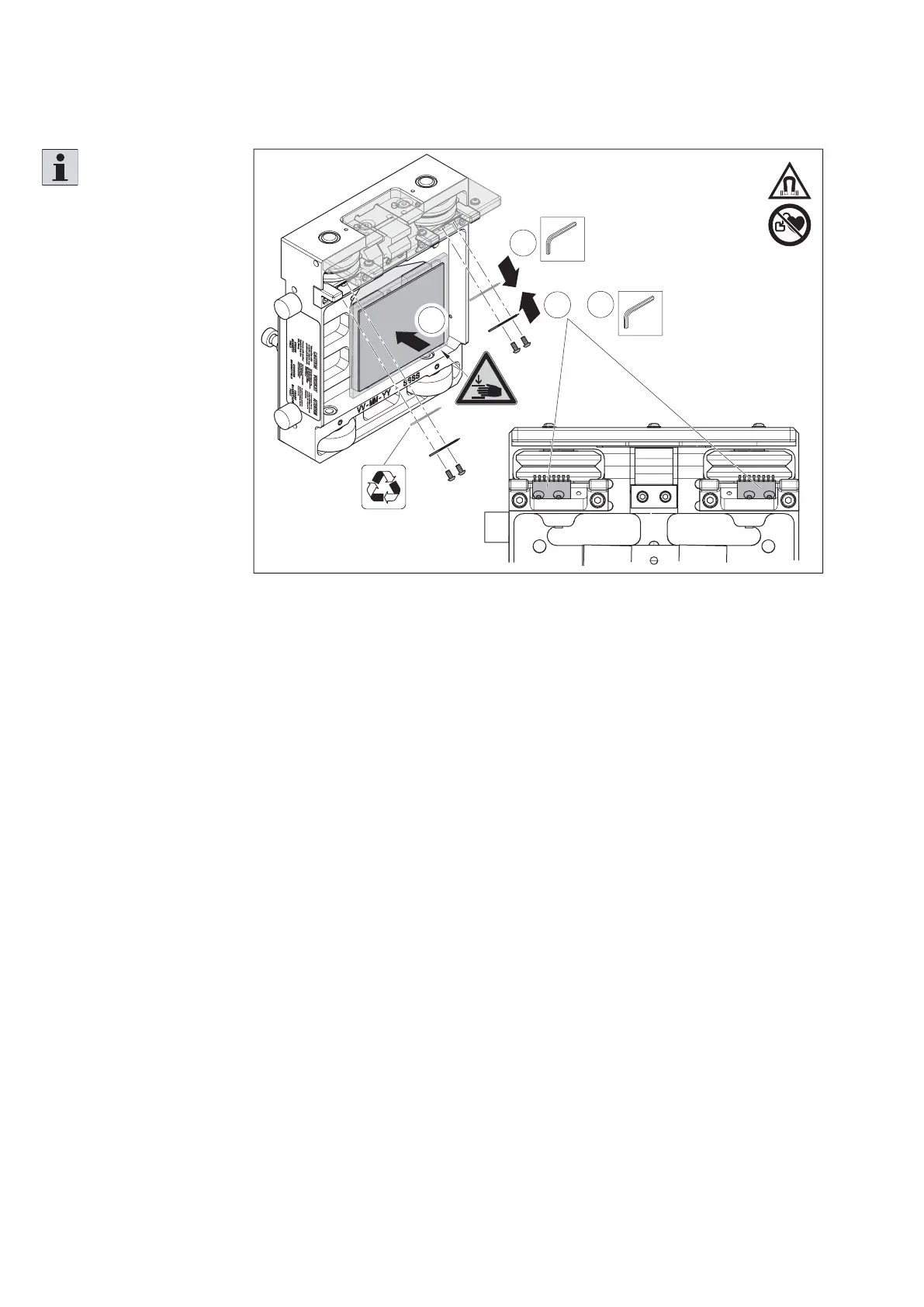

Fig. 90:
3
5
4
2
SW4
4x
SW4
4x
M
D
=1,3 Nm
557 186-79
Replacing discharge brushes
Please note:
• Discharge brushes
must be replaced from
a length of ≤ 3.55 mm.
• Incorrect handling can
bend the discharge
brushes. Assembly is then
no longer possible.
Necessary spare parts
• Discharge brushes (2 pcs)
3 842 555 985
1. Remove the WT from
the ActiveMover
(see chapter 7.5.14).
2. Place the protective
plate with the
plastic cover on the
magnetic kit!
3. Remove the discharge
brushes.
4. Align the discharge
brushes with the outer
bores of the tilt device.
5. Mount the fi xing screws
of the discharge brushes
and tighten them.
