7.6.6 Connecting network and cable control voltage (24 V)
(from left section/curve module)

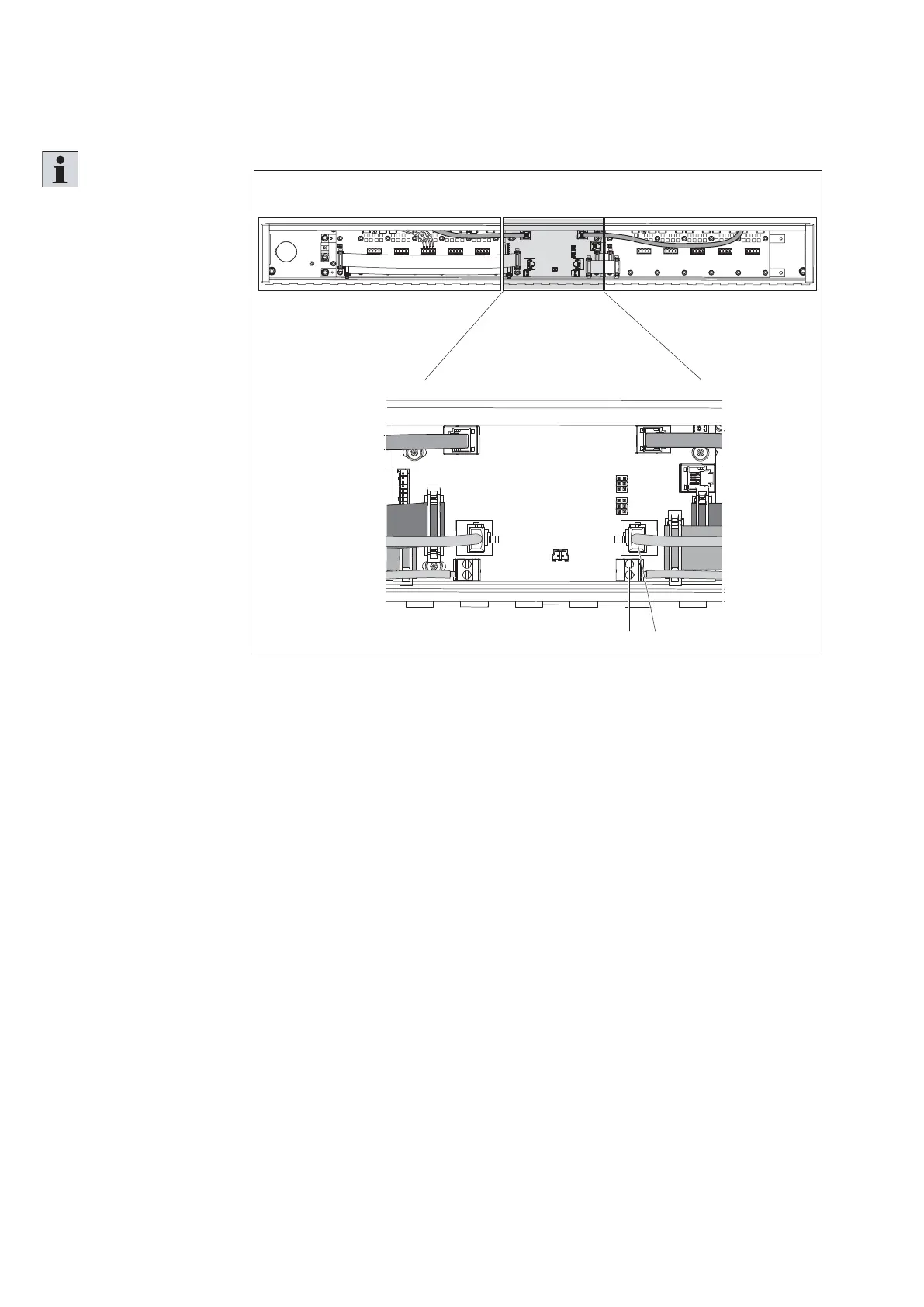

Fig. 70:
GH
557 186-64
Connecting network cables (from left section/curve module)
Please note:
• The connection of an
adjacent curve module is
the same as connecting an
adjacent section module.
• For further information on
the electrical connection,
please refer to the circuit
diagram included in the
scope of delivery.
• The electronics voltage
supply cable (24 V) can be
connected to either of
the two contacts on
terminal G.
1. Connect the network
cable to terminal H on
the printed circuit board
(gateway).
2. Connect the control
voltage (24 V) cable to
terminal G.
