40/188 About this product
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
5.2.10 IR ID system

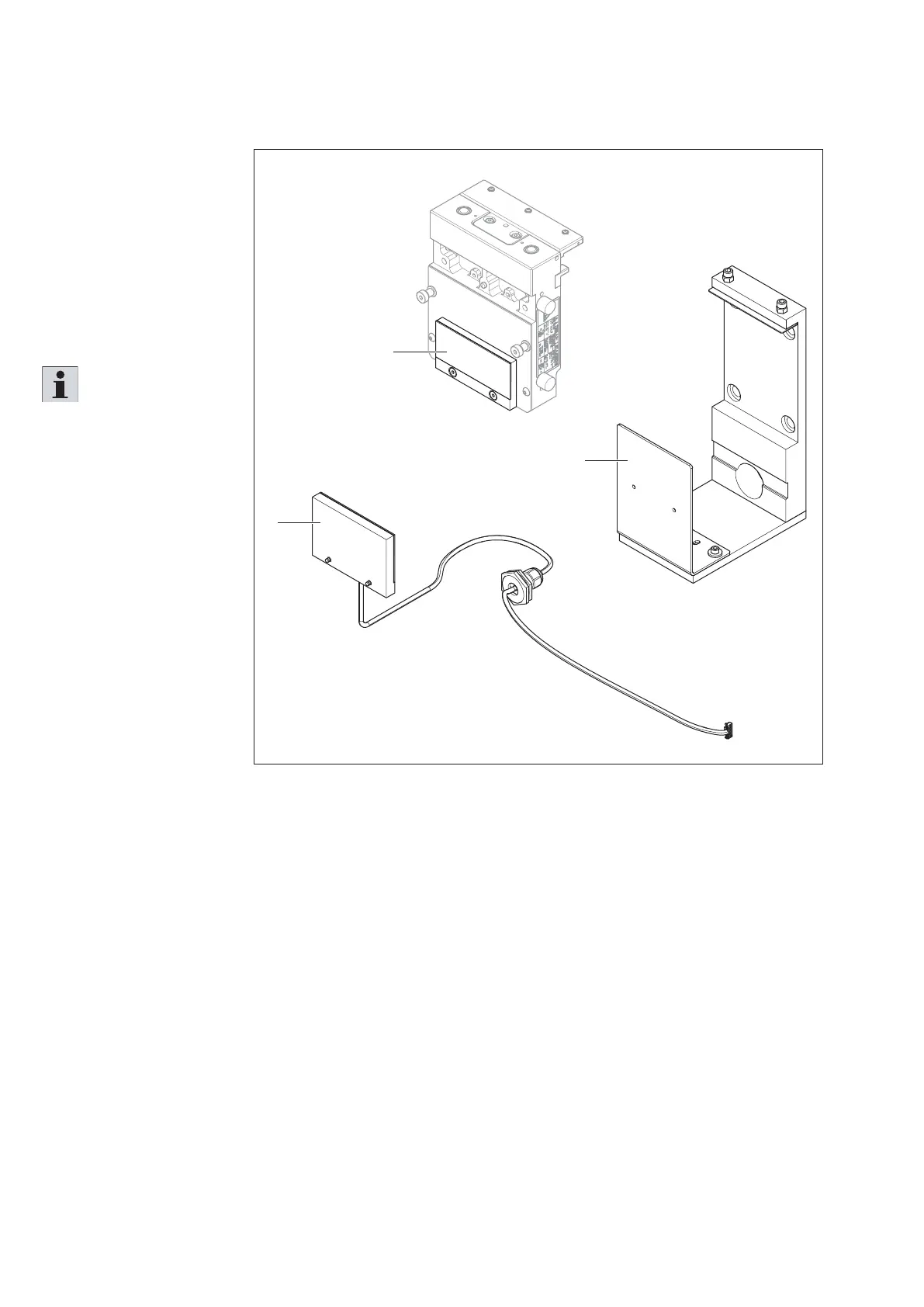

Fig. 19:
557 186-19
A
C
B
IR ID system components
A:
IR data carrier
3 842 559 447
B:
Mounting kit for IR
reading head
3 842 559 440
C:
IR reading head with
connection cable and
cable gland
3 842 559 441
Please note:
• The IR reading head
contains a class 1
laser according to
DIN EN 60825-1:2008.
If the IR ID system is
operated as ActiveMover
component as intended,
the accessible laser light
is not dangerous.
• The IR data carrier has
a permanently assigned
number and cannot be
reprogrammed. The
number is engraved at the
edge of the IR data carrier.
