10.4.6 Replacing the felt (lubrication device for WT)

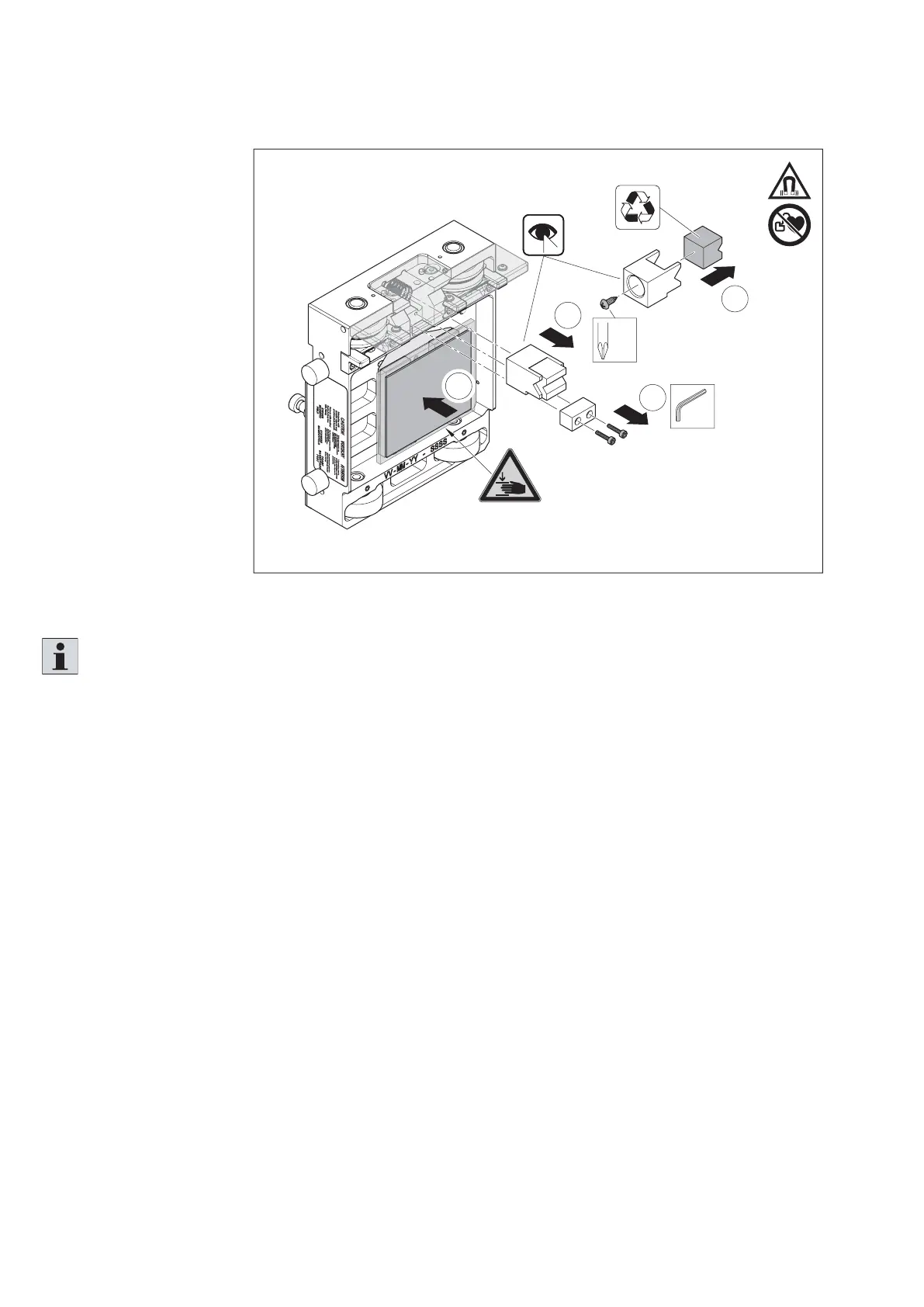

Fig. 92:
3
4
5
2
PH2
SW2,5
2x
M
D
=2 Nm
557 186-81
Replacing the felt (lubrication device for WT)
Necessary spare parts
• Lubricating felt
3 842 555 984
1. Remove the WT from
the ActiveMover
(see chapter 7.5.14).
2. Place the protective plate
with the plastic cover on
the magnetic kit!
3. Remove the fi xing block
from the lubricating felt
holder.
4. Remove the lubricating
felt holder.
5. Remove the lubricating
felt.
6. Install the new
lubricating felt in reverse
order.
7. Lubricate the WT
(see chapter 10.3.1).
Please note:
The V-groove of the felt
must be placed horizontally
on the V-guide rollers.
