7.6.5 Connecting grounding and power cables (28 V)
(from right section/curve module)

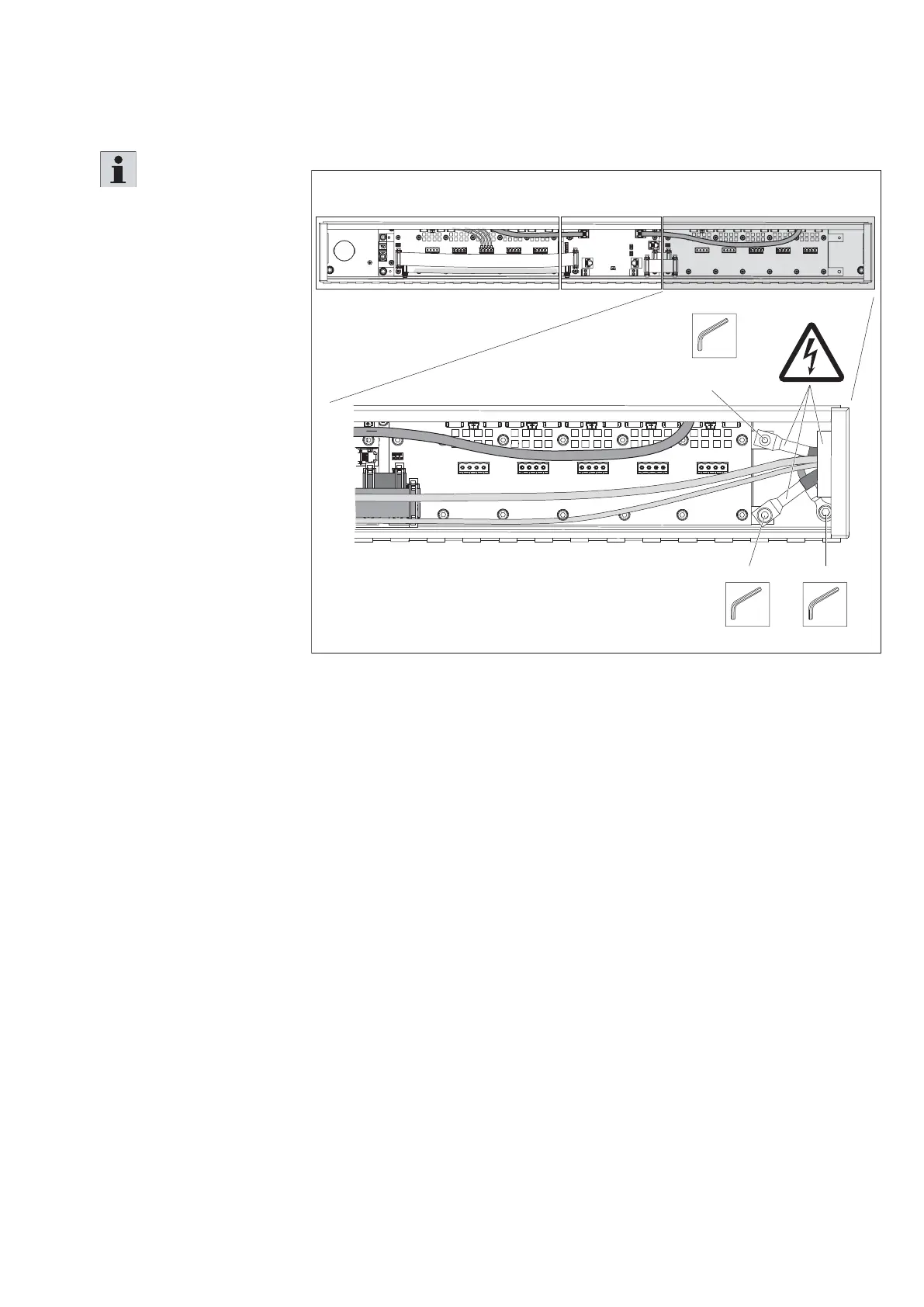

Fig. 69:
557 186-63
I
D
J
SW5
M
D
=11 Nm
SW5
M
D
=11 Nm
SW4
M
D
=2,7 Nm
Connecting grounding and power cables (right section/curve module)
Please note:
• The connection of an
adjacent curve module is
the same as connecting an
adjacent section module.
• Please make sure that
there is no short circuit
between the connection
cables and the cable
protection pipe.
• For further information on
the electrical connection,
please refer to the circuit
diagram included in the
scope of delivery.
1. Connect the grounding
cable (YE/GN) to the
housing (J).
2. Connect the power
cable (28 V DC, blue)
to terminal D.
3. Connect the power cable
(0 V, blue/white)
to terminal I.
