Bosch Rexroth ActiveMover - Module Holder 3 842 559 429

About this product 23/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
5.2.6 Module holder 3 842 559 429

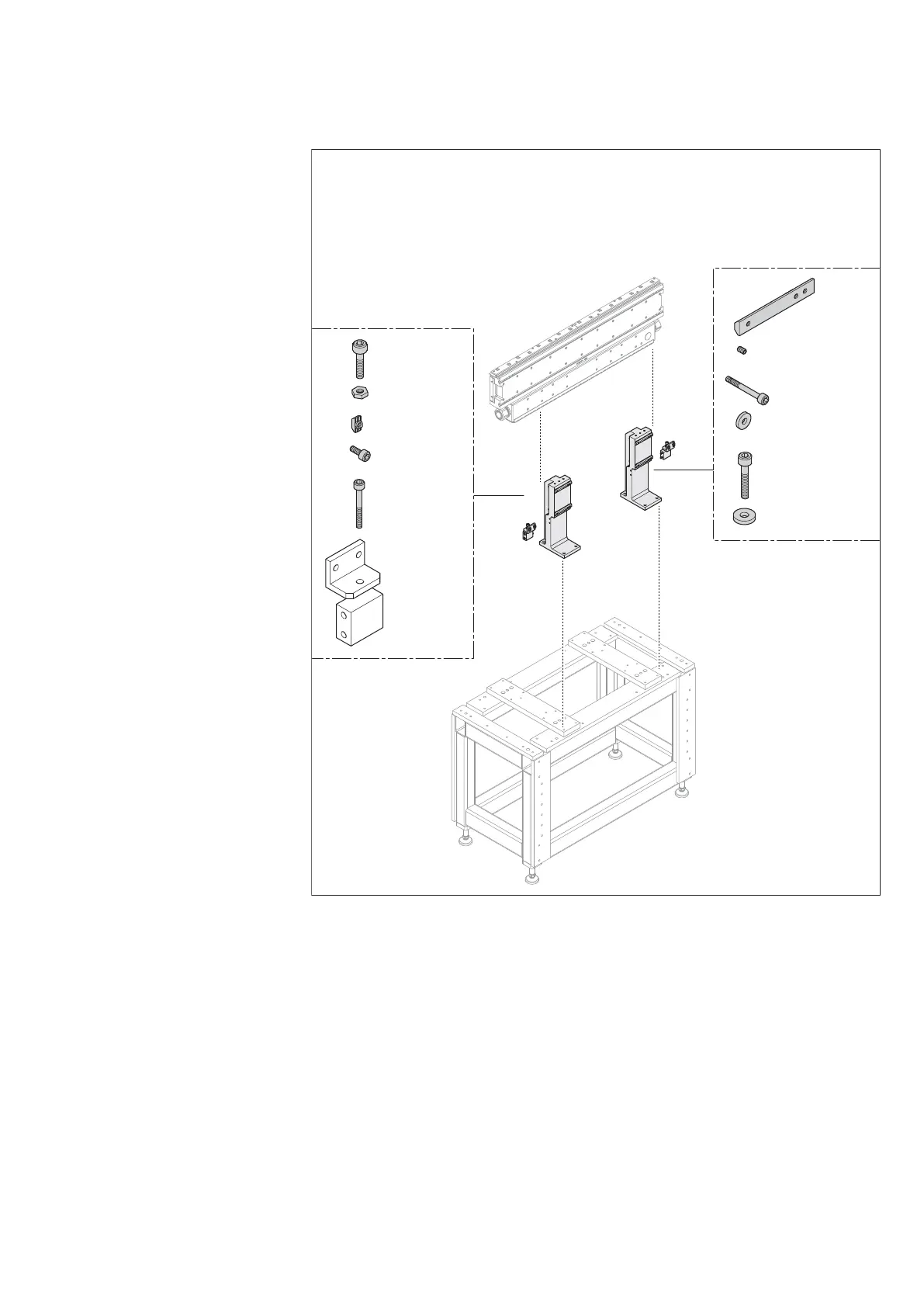

Fig. 7:
A
B
G
F
D
C
E
557 186-07
4 x M6 x 8
8 x M6 x 45 12.9
2 x M8 x 30
2 x M8
4 x 8 mm
4 x M6 x 14
4 x M6 x 45
2 x
2 x
8 x
M6
8 x M8 x 40 12.9
8 x M8
4 x
Module holder 3 842 559 429
Module holder for
mounting a section
module 3 842 559 426
on a connection kit
3 842 559 454.
A:
Module holder (2x)
B:
Height adjustment (2x)
C:
Holder (2x)
D:
Mounting bracket (2x)
E:
Setting screw (2x)
F:
Sliding blocks (4x)
G:
Headless setscrew (4x)
