Bosch Rexroth ActiveMover - Curve Module 3 842 559 430

About this product 29/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
5.2.8 Curve module 3 842 559 430

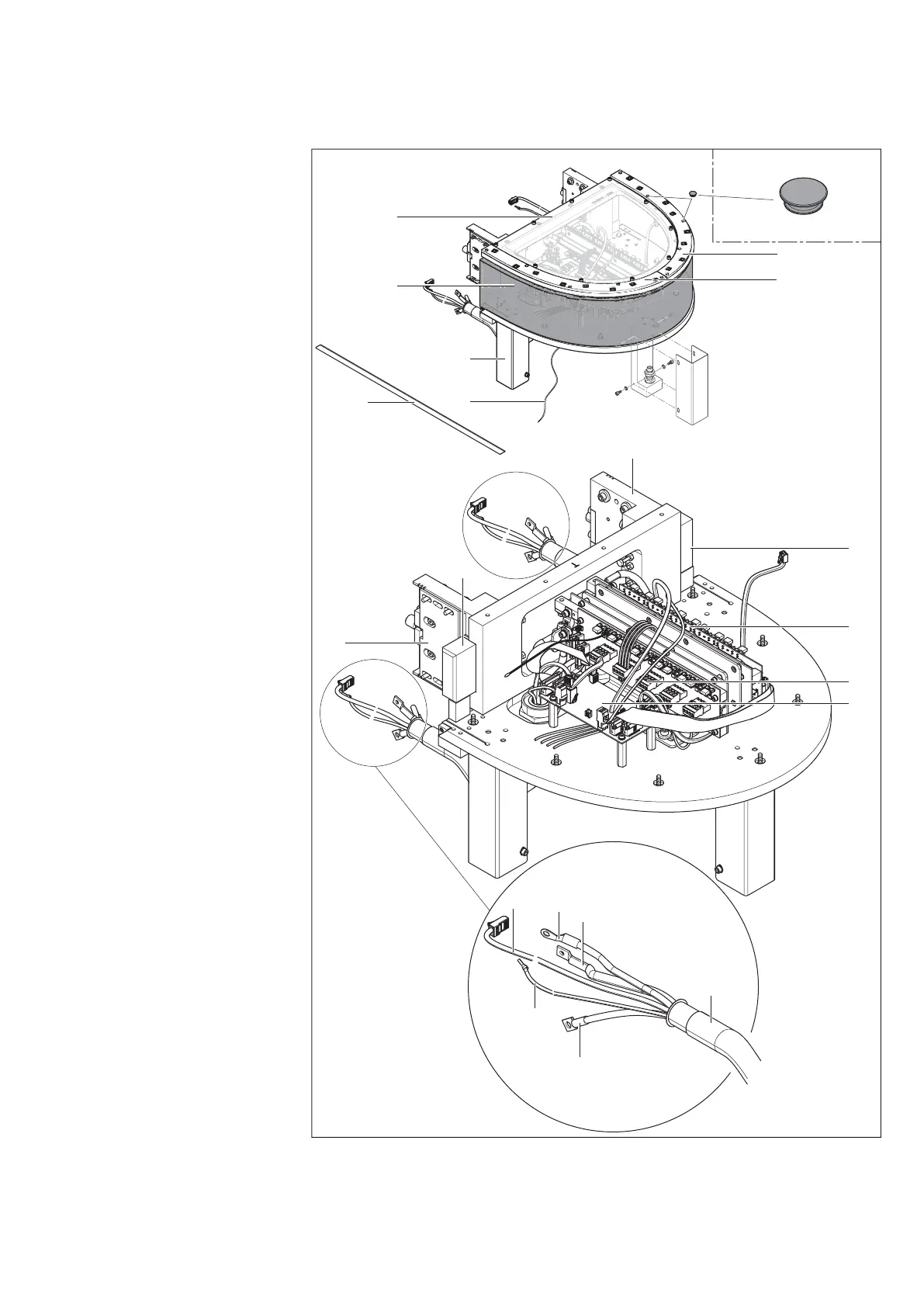

Fig. 13:
B
H
G
J
K
L
I
A
C
D
E
F
557 186-13
M
E
I
F
N
O
P
R
Q
S
10 x
ø7,4
2 x
Curve module
A:
Cover
(electronics box)
B:
Cover (coil)
C:
Module holder
D:
Grounding cable
E:
Connection kit (2x)
F:
Connection cable
to the section
module (2x)
G:
Measuring system
(encoder) right
H:
Measuring system
(encoder) left
I:
Connection block (2x)
J:
Printed circuit board
(coil driver)
K:
Printed circuit board
(coil driver)
L:
Printed circuit board
(gateway)
M:
Guide rail 500 mm (2x)
N:
Network cable
(Ethernet)
O:
Control voltage
cable (24 V)
P:
Power cable
(28 V DC)
Q:
Grounding cable
R:
Power cable (0 V)
S:
Cable protective pipe
