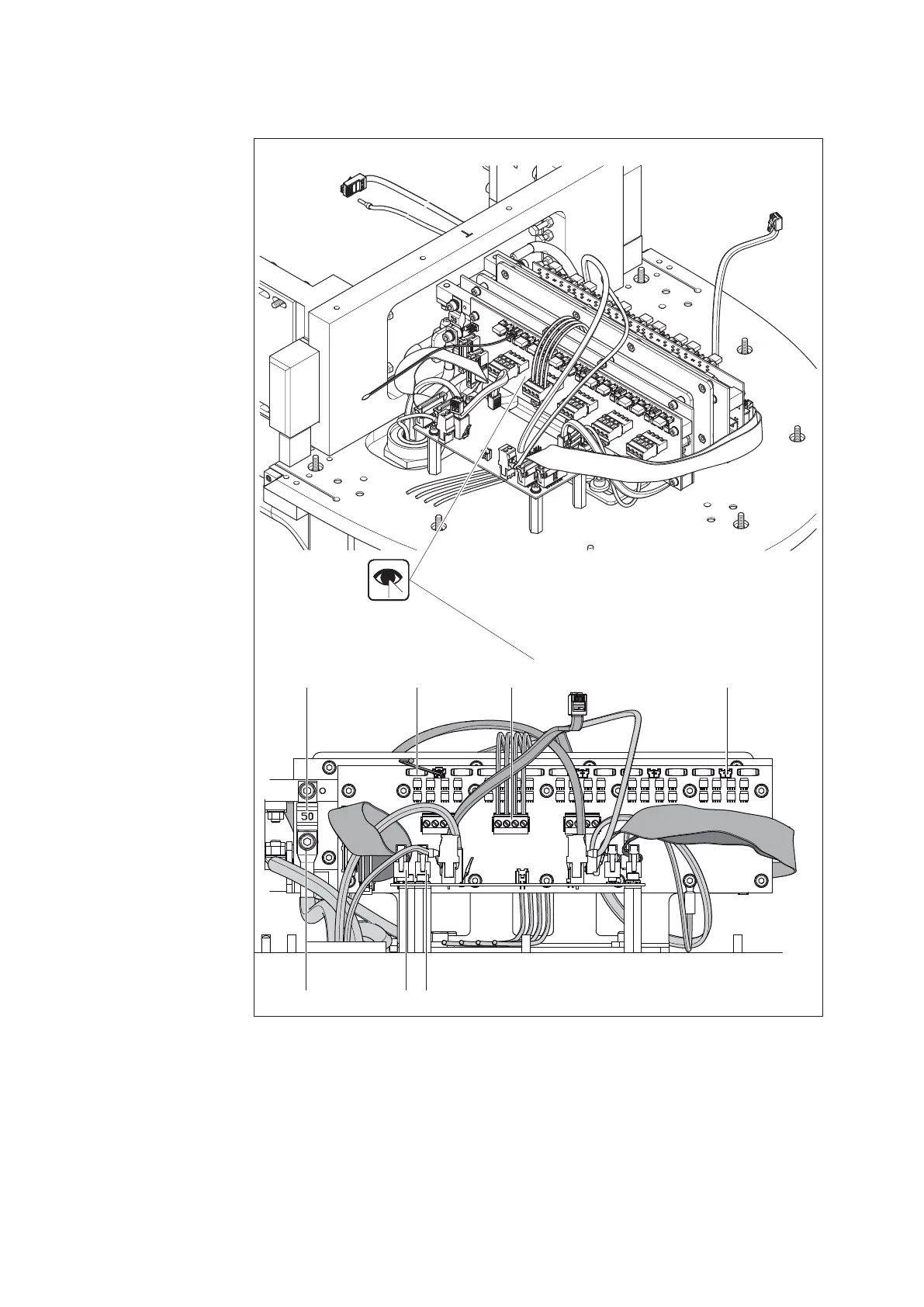

Fig. 14:
557 186-14
A
BGH
D EC
Printed circuit board (coil driver) left
A:
50 ampere fuse
B:
Motor cable
connection (28 V)
C:
Fuse (coil)
D:
Plug connector (coil)
E:
Thermal resistance
F:
Motor cable
connection (0 V)
G:
Flat ribbon cable
(section module)
top left
H:
Flat ribbon cable
(section module)
bottom left
