About this product 31/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG

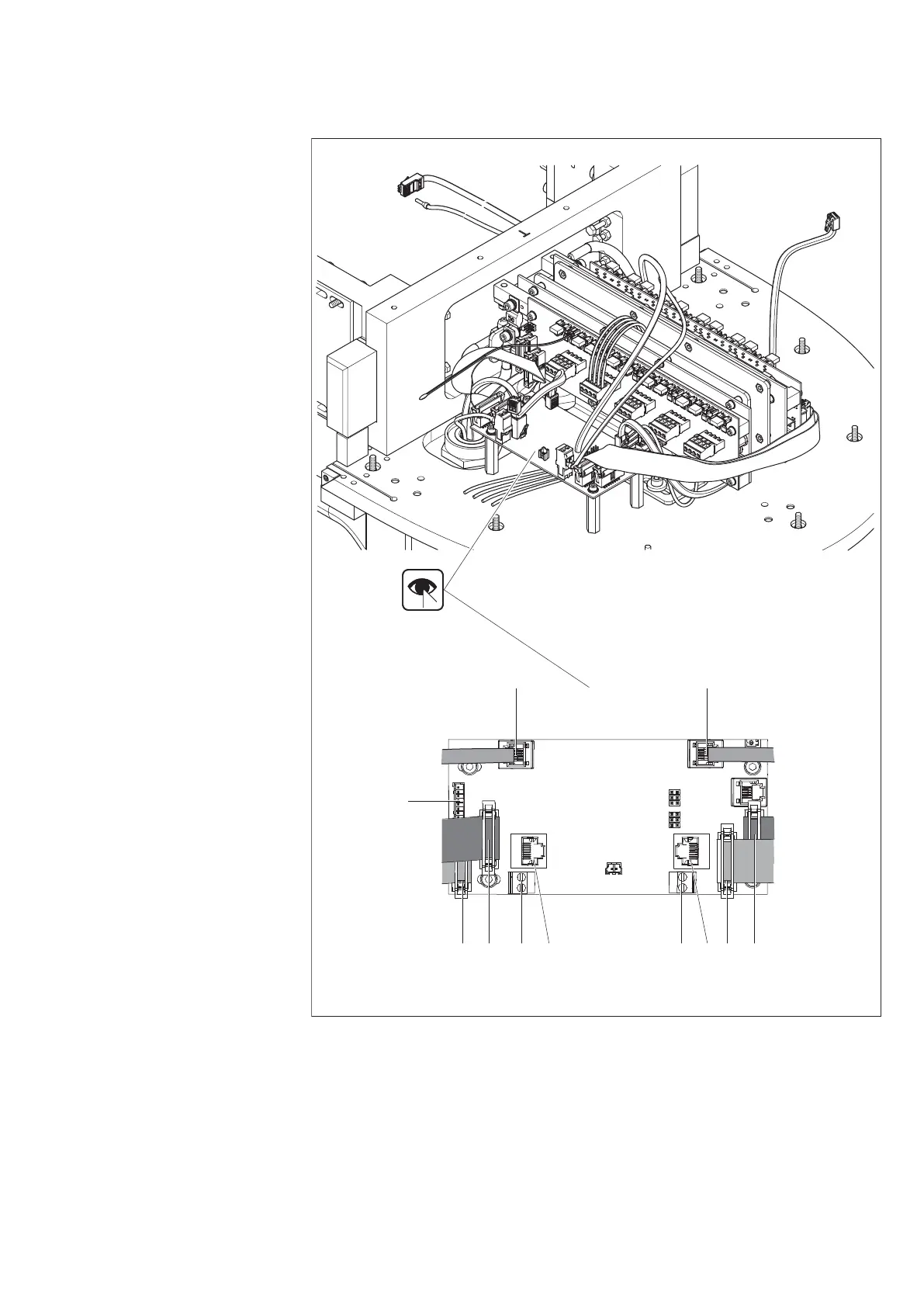

Fig. 15:
557 186-15
A
C
B
FED KJG H I
Printed circuit board (gateway)
A:
Measuring system
cable (encoder) left
B:
Measuring system
cable (encoder) right
C:
IR reading head cable
D:
Flat ribbon cable
(section module)
top left
E:
Flat ribbon cable
(section module)
bottom left
F:
Control voltage
connection (24 V)
G:
Network cable
connection
H:
Control voltage
connection (24 V)
I:
Network cable
connection
J:
Flat ribbon cable
(section module)
top right
K:
Flat ribbon cable
(section module)
bottom right
