32/188 About this product
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04

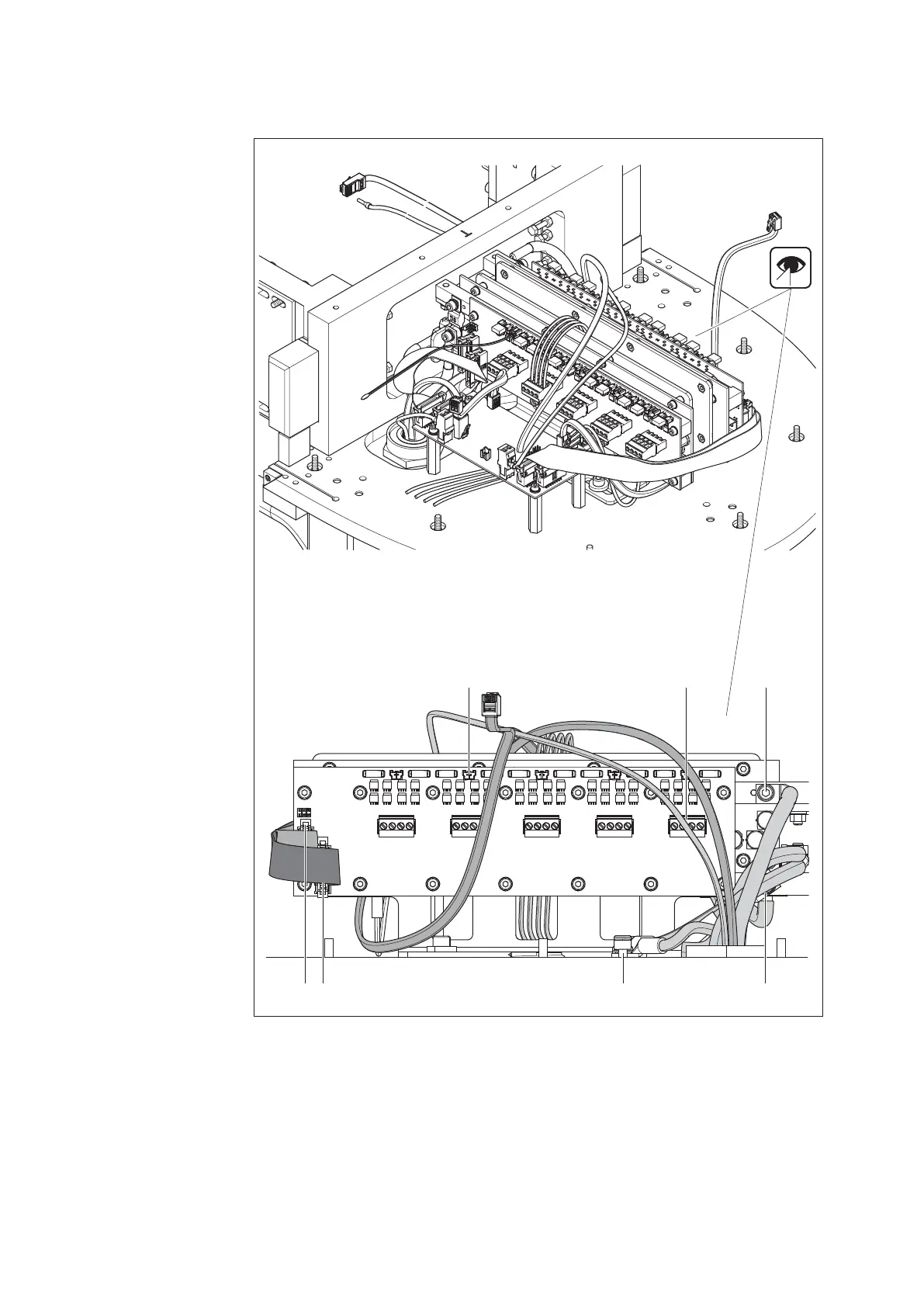

Fig. 16:
557 186-16
DE FG
A
B C
Printed circuit board (coil driver) right
A:
Thermal resistance
B:
Plug connector (coil)
C:
Motor cable
connection (28 V)
D:
Flat ribbon cable
(section module)
bottom right
E:
Flat ribbon cable
(section module)
top right
F:
Motor cable
connection (0 V)
G:
Connection for
grounding cable
