Bosch Rexroth ActiveMover - Replacing the Measuring System (Encoder) (Section Module)

154/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
10.4.23 Replacing the measuring system (encoder) (section module)

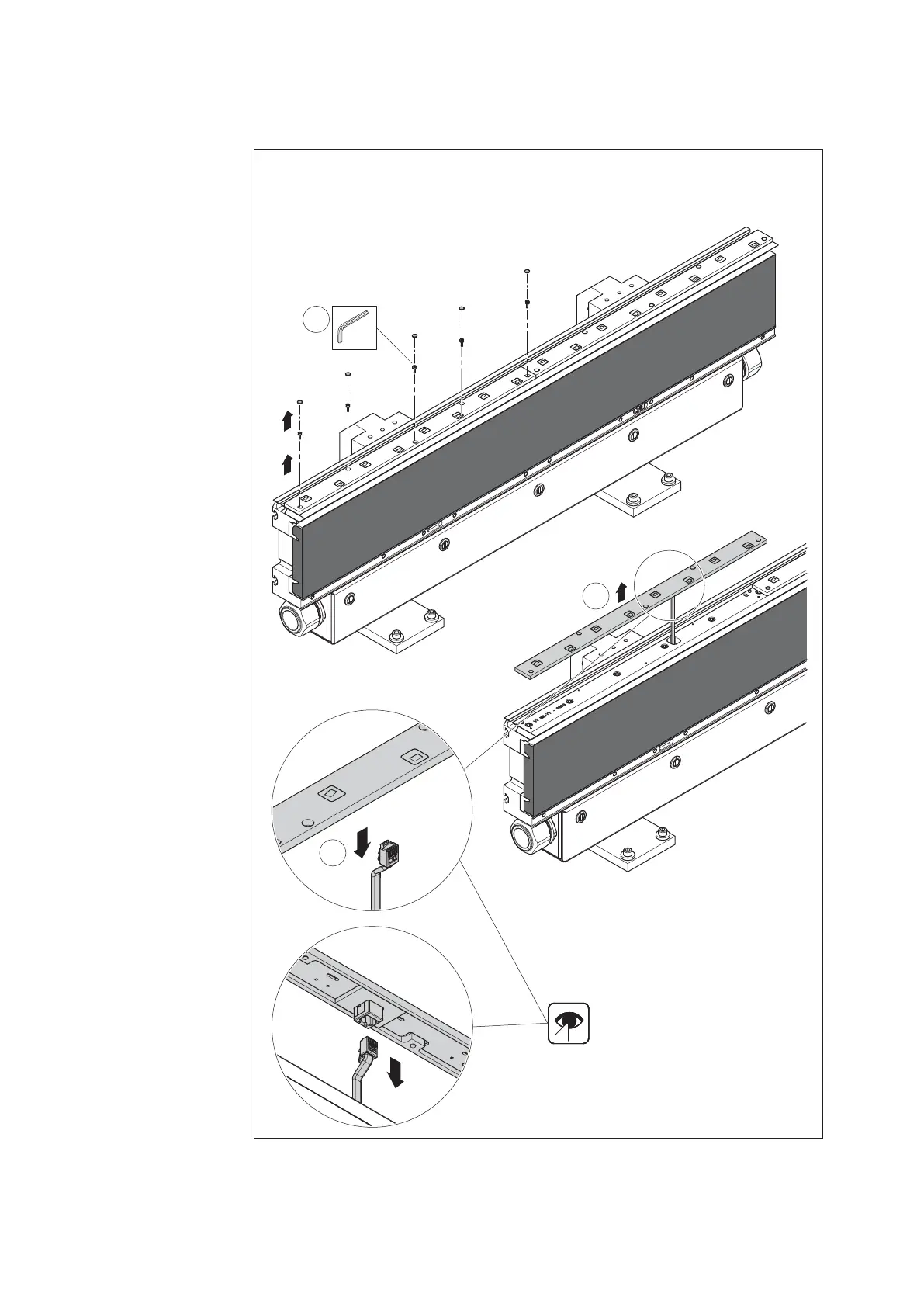

Fig. 112:
1
SW2,5
5x
2
2
557 186-101
M
D
=2 Nm
Replacing the measuring system (encoder) (section module)
Necessary spare parts
• Measuring system
(encoder) (section module)
3 842 555 962
1. Remove the sensor unit.
2. Pull off the connection
cable.
3. Install the new sensor
unit in reverse order.
4. Calibrate the new sensor
unit (see chapter 10.5).
