10.4.22 Replacing the section/curve module coil fuse

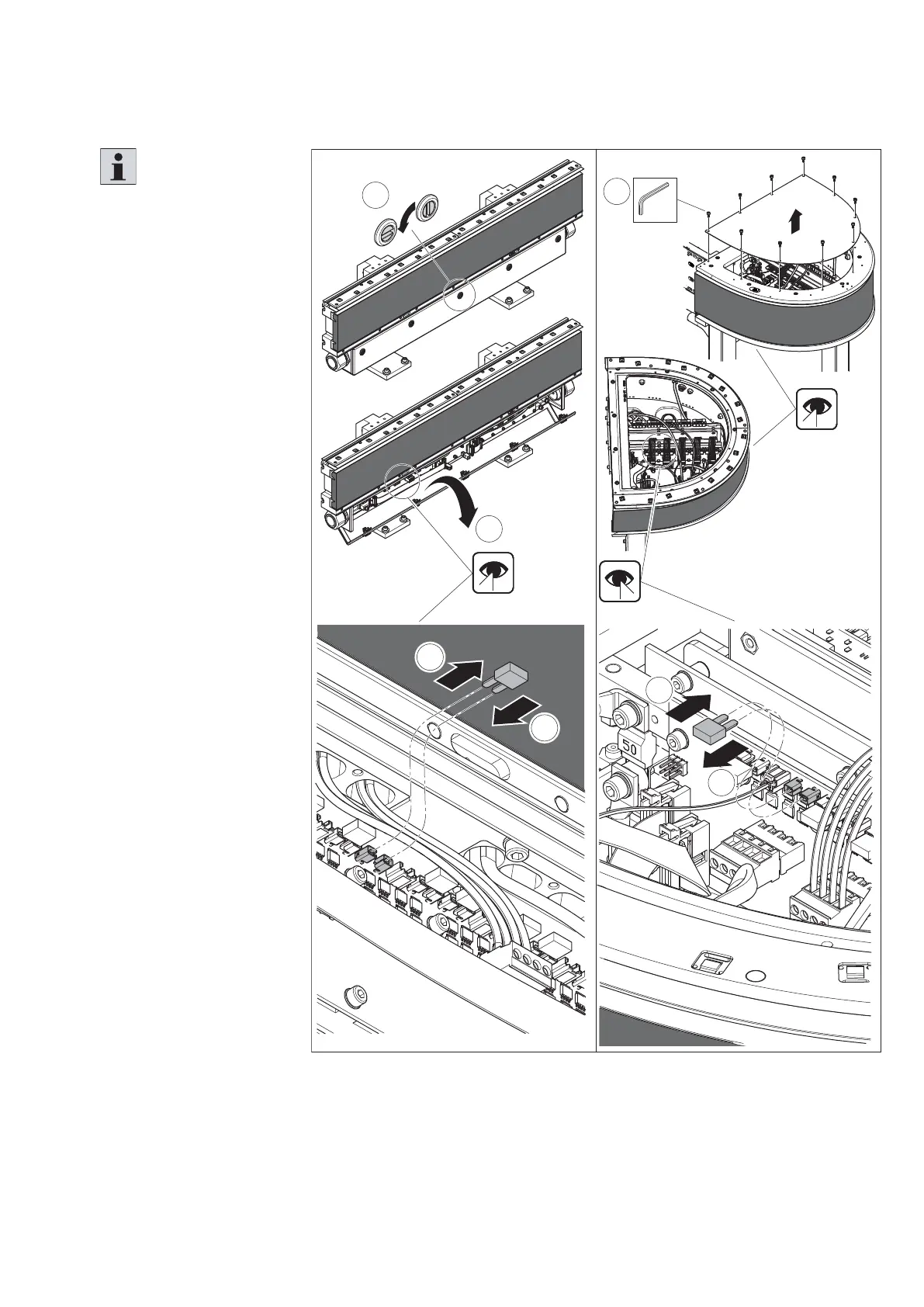

Fig. 111:
557 186-100
1
1
5x
3
2
SW4
10x
1
M
D
=10 Nm
2
3
Replacing the section/curve module coil fuse
Please note:
The coil fuses of the
section/curve modules
are located on the left and
right printed circuit board
(coil driver).
Necessary spare parts
• Coil fuse section/curve
module 15 A
3 842 555 986
1. Open the protective fl ap
of the electronics box
of the section module
or disassemble the
protective cover of the
curve module.
2. Pull the coil fuse out of
the fuse holder.
3. Install the new coil fuse
(15 A) in reverse order.
