10.4.3 Replacing the rubber buffer

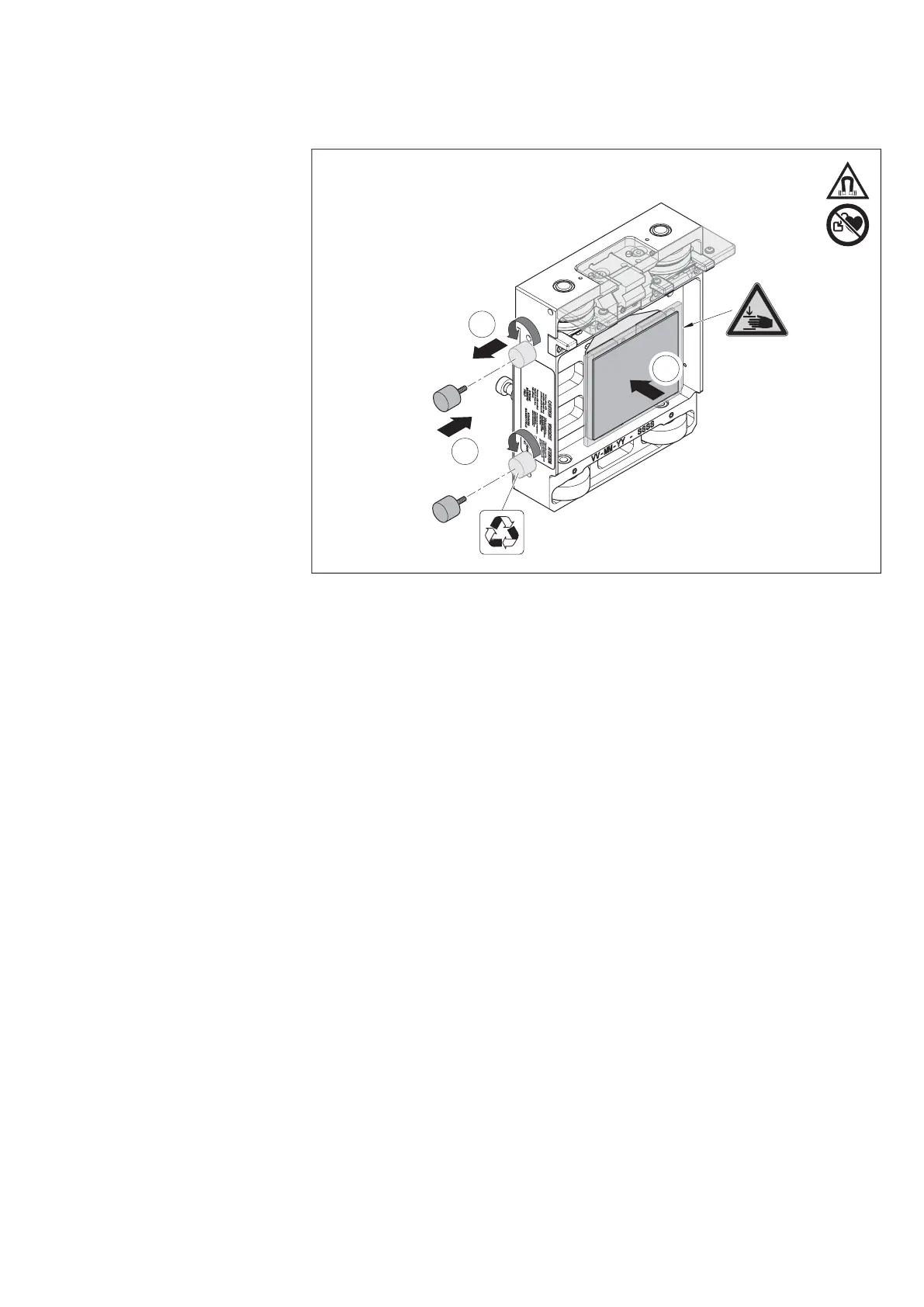

Fig. 89:
3
4
2
557 186-78
Replacing the rubber buffer
1. Remove the WT from
the ActiveMover
(see chapter 7.5.14).
2. Place the protective plate
with the plastic cover on
the magnetic kit!
3. Remove the rubber
buffers.
4. Assemble the new
rubber buffers.
