Transport and storage 49/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG

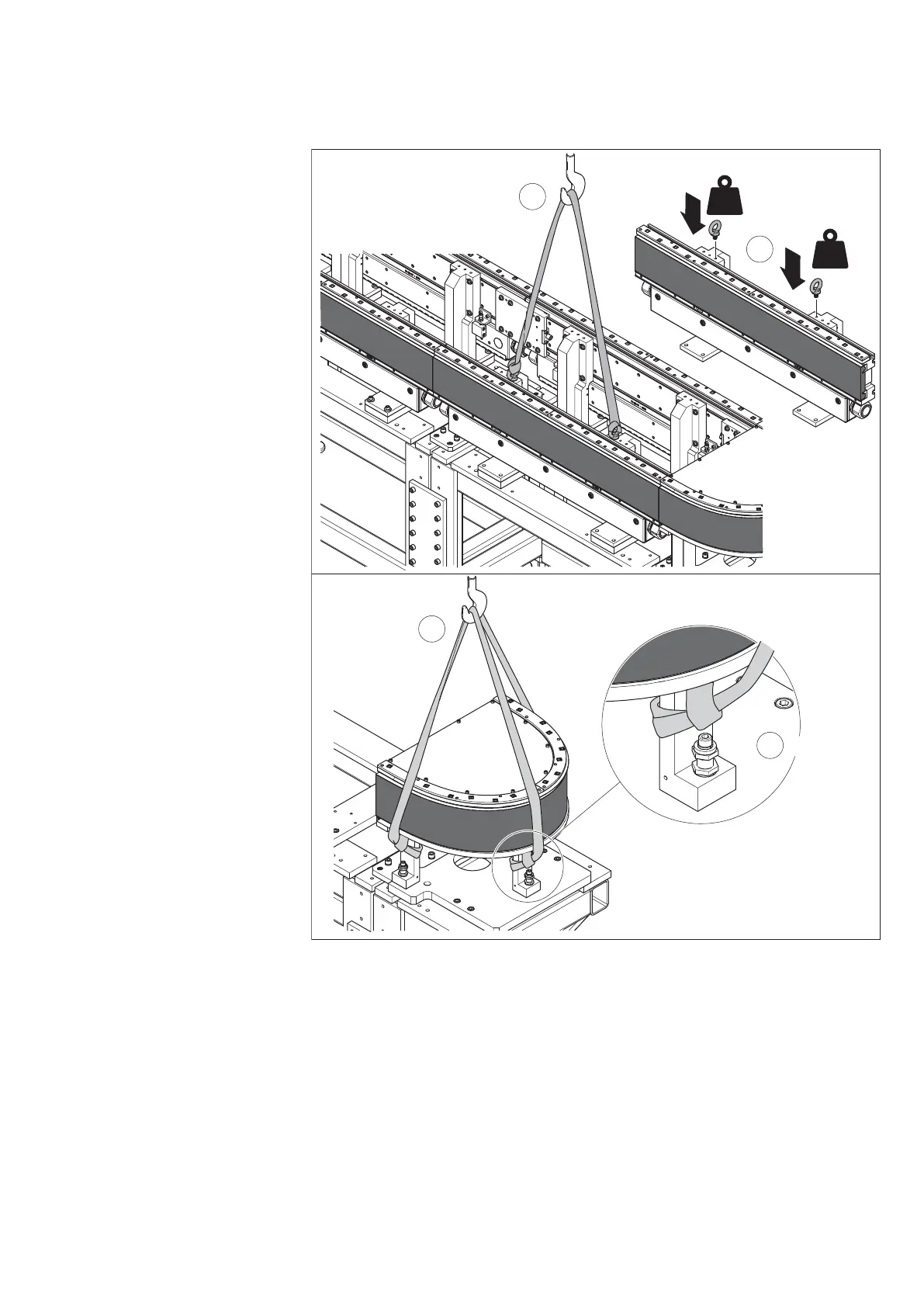

6.1.1 Transport suggestion for conveyor/curved units
Fig. 28:
557 186-131
1
100kg
100kg
1
2
2
M8
M8
3x
Transport suggestion for conveyor/curved units
6.2 Storing the product
• Only set the product down on a fl at surface.
• Protect the product from mechanical stress.
• Protect the product from environmental infl uences, such as dirt and moisture.
• Pay attention to the ambient conditions, see technical data on page 184.
Required tools
• 2 screw-on vortex
M8, load capacity per
100 kg min. (not included
in the scope of delivery)
• 3 lifting straps/round
slings, load capacity per
100 kg min. (not included
in the scope of delivery)
