10.4.14 Replacing the cover of the coil (section and curve module)

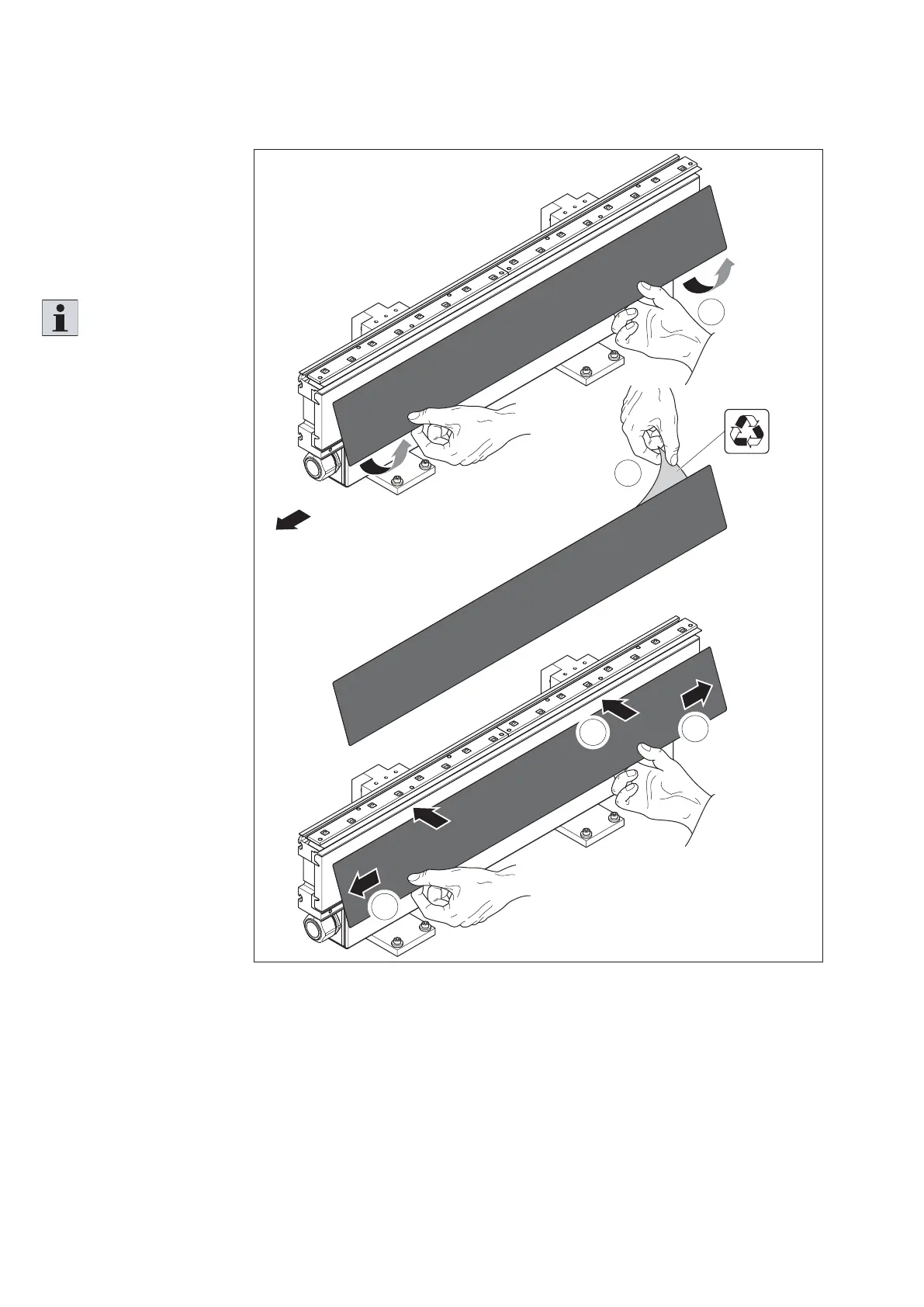

Fig. 100:
557 186-89
11
3
4
5
5
Replacing the cover of the coil (here the example of the section module)
Necessary spare parts
• Section module coil cover
3 842 554 510
• Curve module coil cover
3 842 554 516
Please note:
The cover is detachably
glued to the coil.
1. Remove the cover from
the coil.
2. Clean any adhesive
residues off of the
coil, for example using
isopropanol (IPA).
3. Remove the protective
foil from the rear of the
new cover.
4. Put the cover on the
top edge of the coil and
push the cover carefully
from top to bottom.
5. Press out any air
inclusions from the
inside to the outside.
