Bosch Rexroth ActiveMover - Replacing the V-Guide Rollers

138/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
10.4.10 Replacing the V-guide rollers

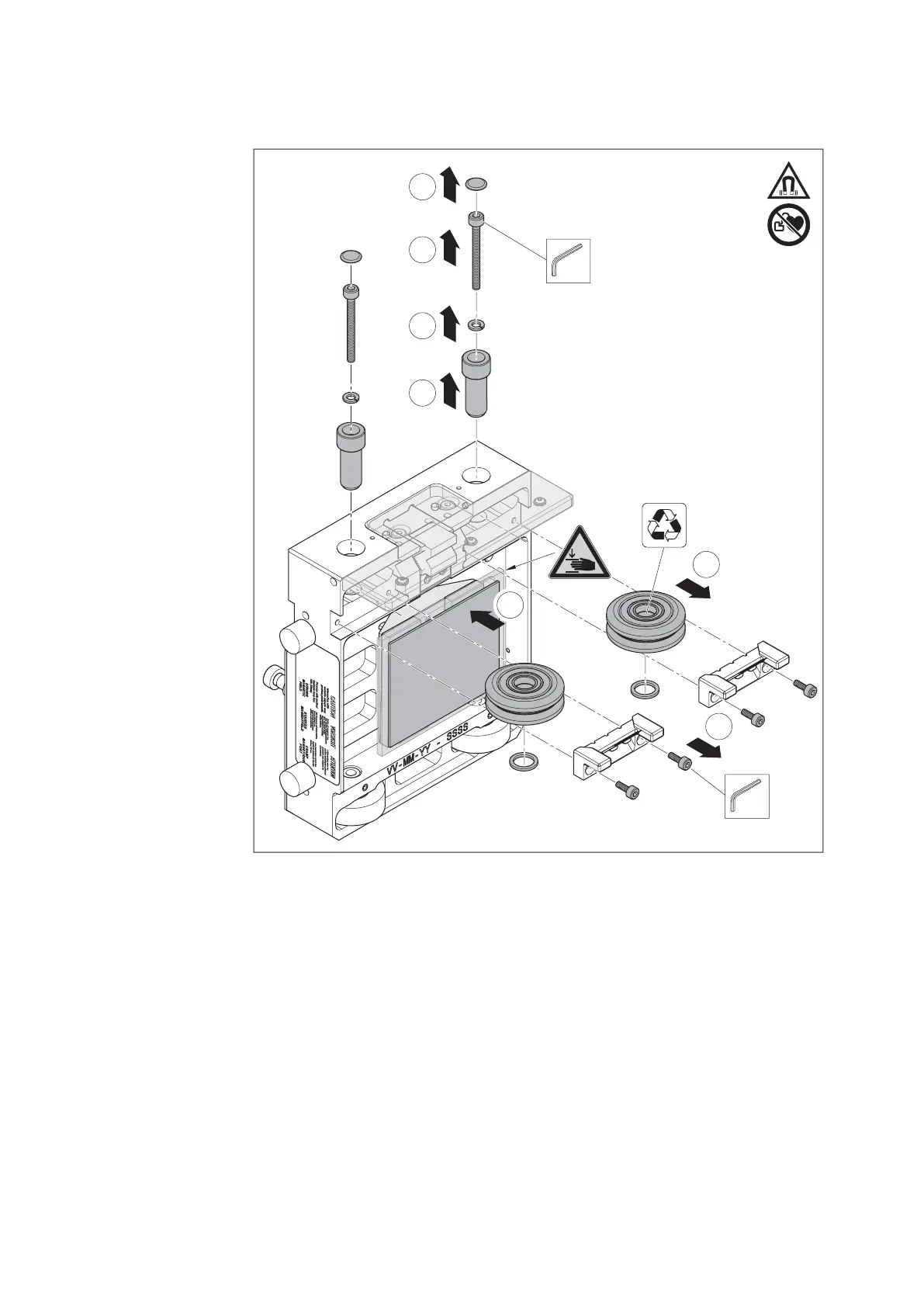

Fig. 96:
4
5
6
7
3
8
2
SW3}
4x
SW4
4x
557 186-85
M
D
=4,5 Nm
Replacing the V-guide rollers
Necessary spare parts
• V-guide rollers (2 pcs)
3 842 555 982
1. Remove the WT from
the ActiveMover
(see chapter 7.5.14).
2. Place the protective plate
with the plastic cover on
the magnetic kit!
3. Remove the protective
equipment for the
discharge brushes.
4. Remove the protective
caps.
5. Remove the hexagon
socket screws.
6. Remove the shims.
7. Remove the bearing pins.
8. Remove the guide rollers.
9. Install the new guide
rollers in reverse order.
