7.6.2 Inserting the connection cable

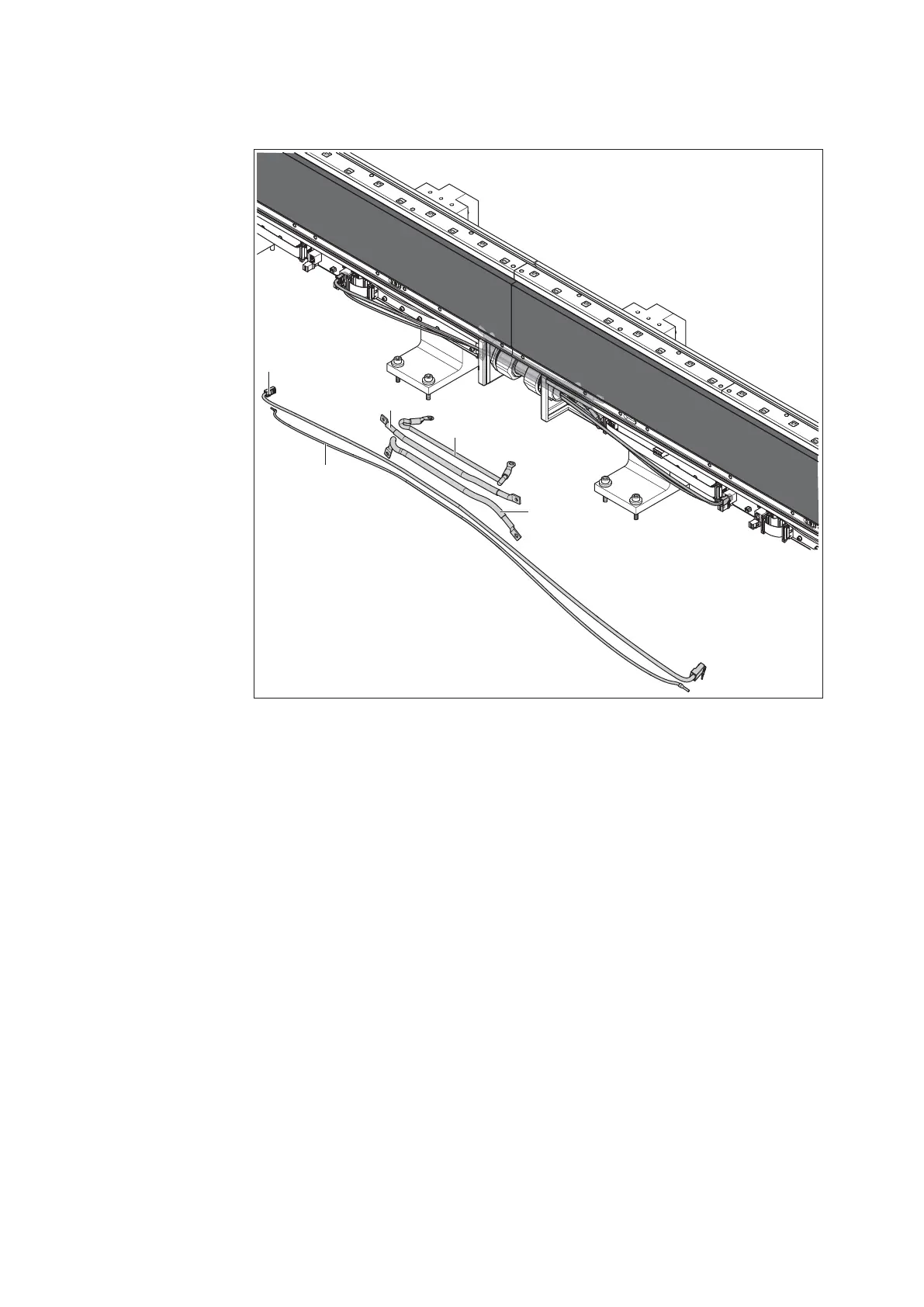

Fig. 66:
557 186-60
B
E
A
C
D
Inserting the connection cable (here the example of the section module)
 Pull the included cable
sets through the cable
protective pipes.
A:
Network cable
(Ethernet)
B:
Power cable
(28 V DC)
C:
Grounding cable
D:
Power cable (0 V)
E:
Control voltage
cable (24 V)
