10.5.9 Installing/removing the WT mounting (optional)

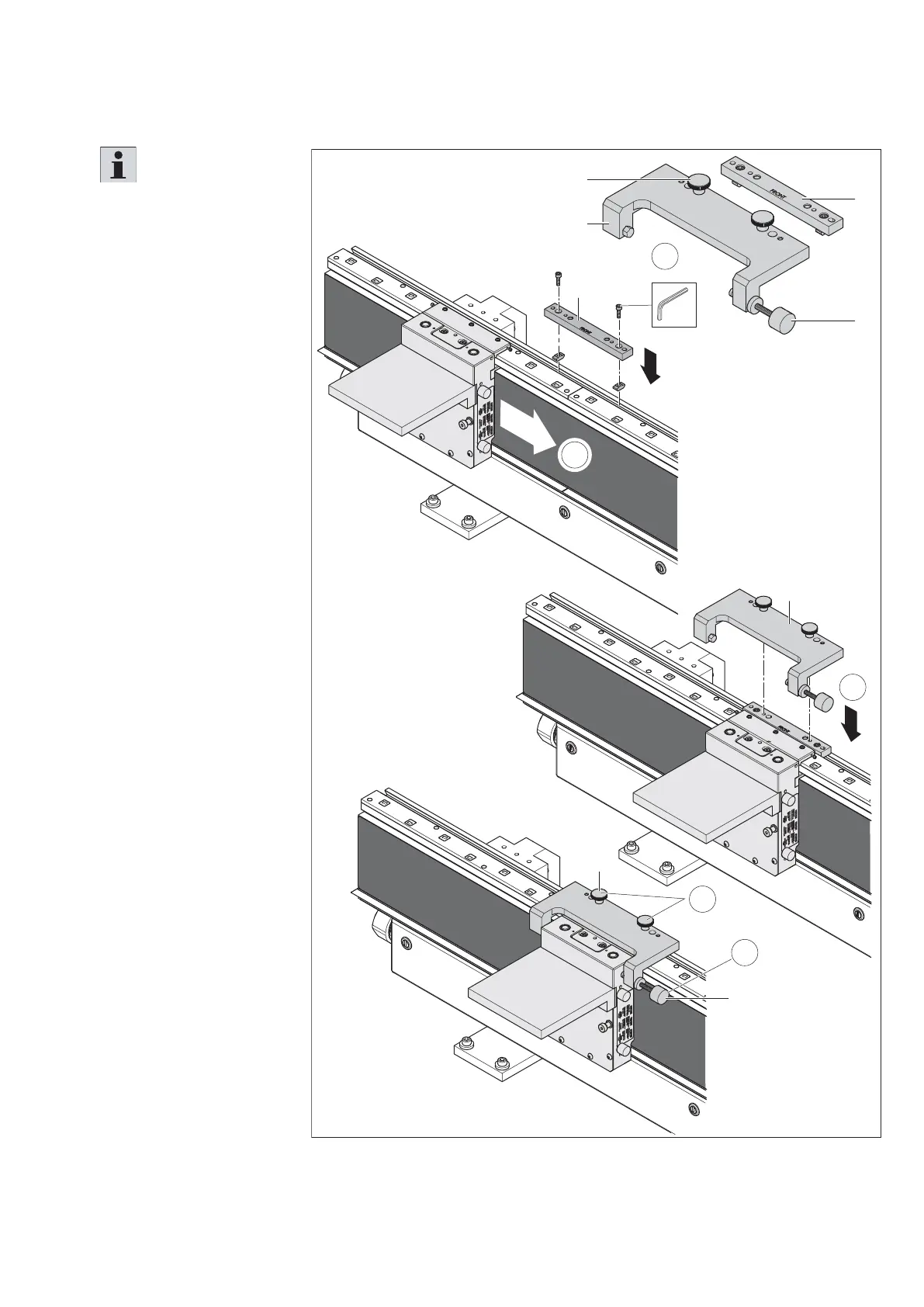

Fig. 133:
A
C
D
B
B
2
SW4
2x
1
C
A
3
4
5
D
557 186-122
Installing/removing the WT mounting
Please note:
• The WT mounting is
required to adjust/
calibrate assembly/
processing processes on
the WT.
• Incorrect use of the WT
mounting can damage the
WT and the ActiveMover.
• All WT mountings must
be removed before
commissioning.
A:
Knurled screw
B:
Mounting support
C:
WT mounting
D:
Knurled screw
1. Install the mounting
supports (B) on
a section module.
2. Position a WT below
a mounting support.
3. Place the WT
mounting (C) on the
holder.
4. Tighten the upper
knurled screws (A) in
order to connect the WT
mounting to the holder.
5. Gently tighten the knurled
screw. The knurled screw
is equipped with a friction
clutch.
 Disassembly is done in
the reverse order.
