174/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04

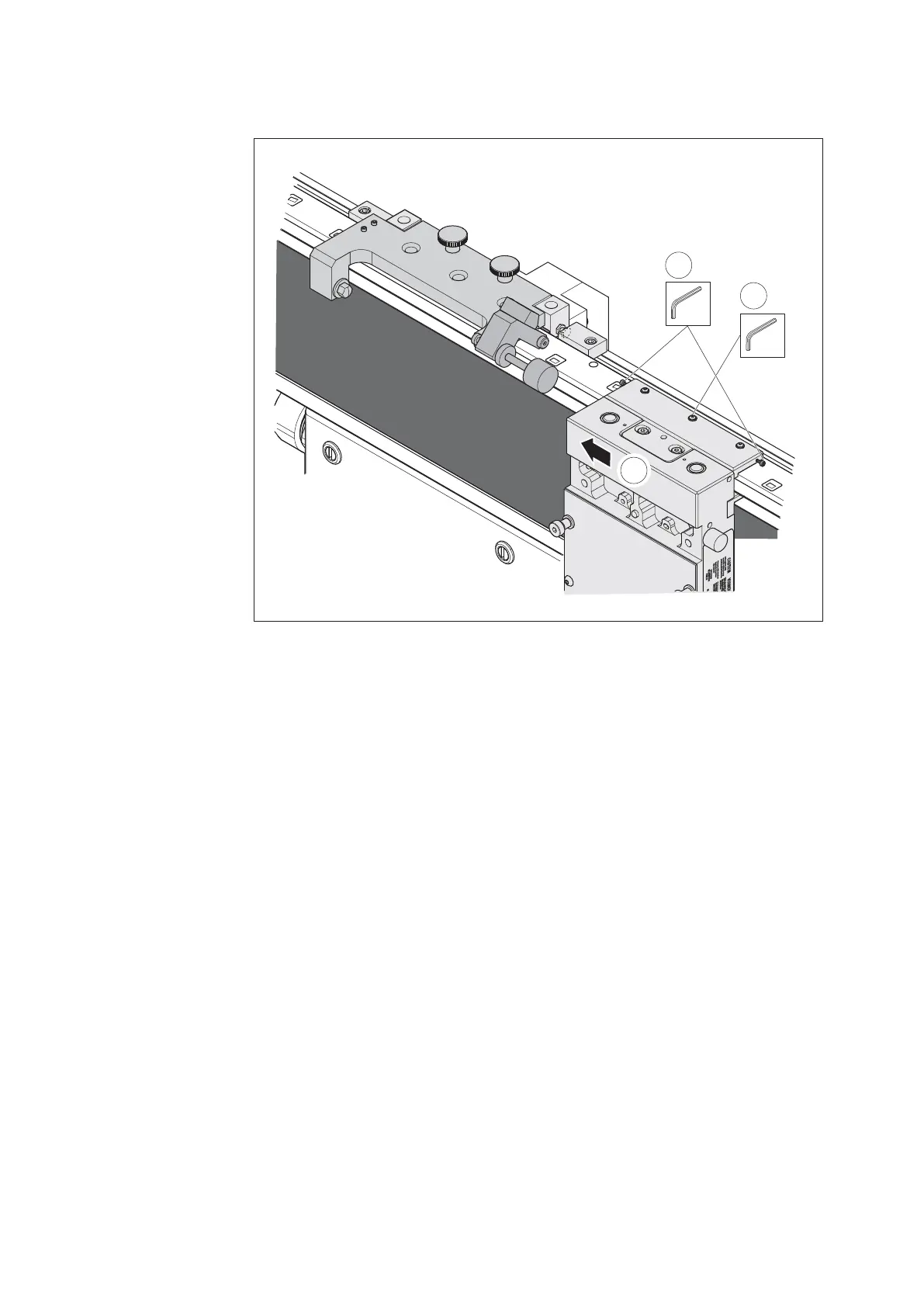

Fig. 132:
557 186-121
SW2
18
3x
21
SW2
6
Adjusting the secondary measuring system (3)
18. Tighten the screws on
the measuring system.
19. Check the display again.
20. Click Finish.
21. Remove the auxiliary
screws.
