Maintenance and repair 173/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
Fig. 131:
557 186-120
14
13
15 cm
15
11
11
2017
10 12

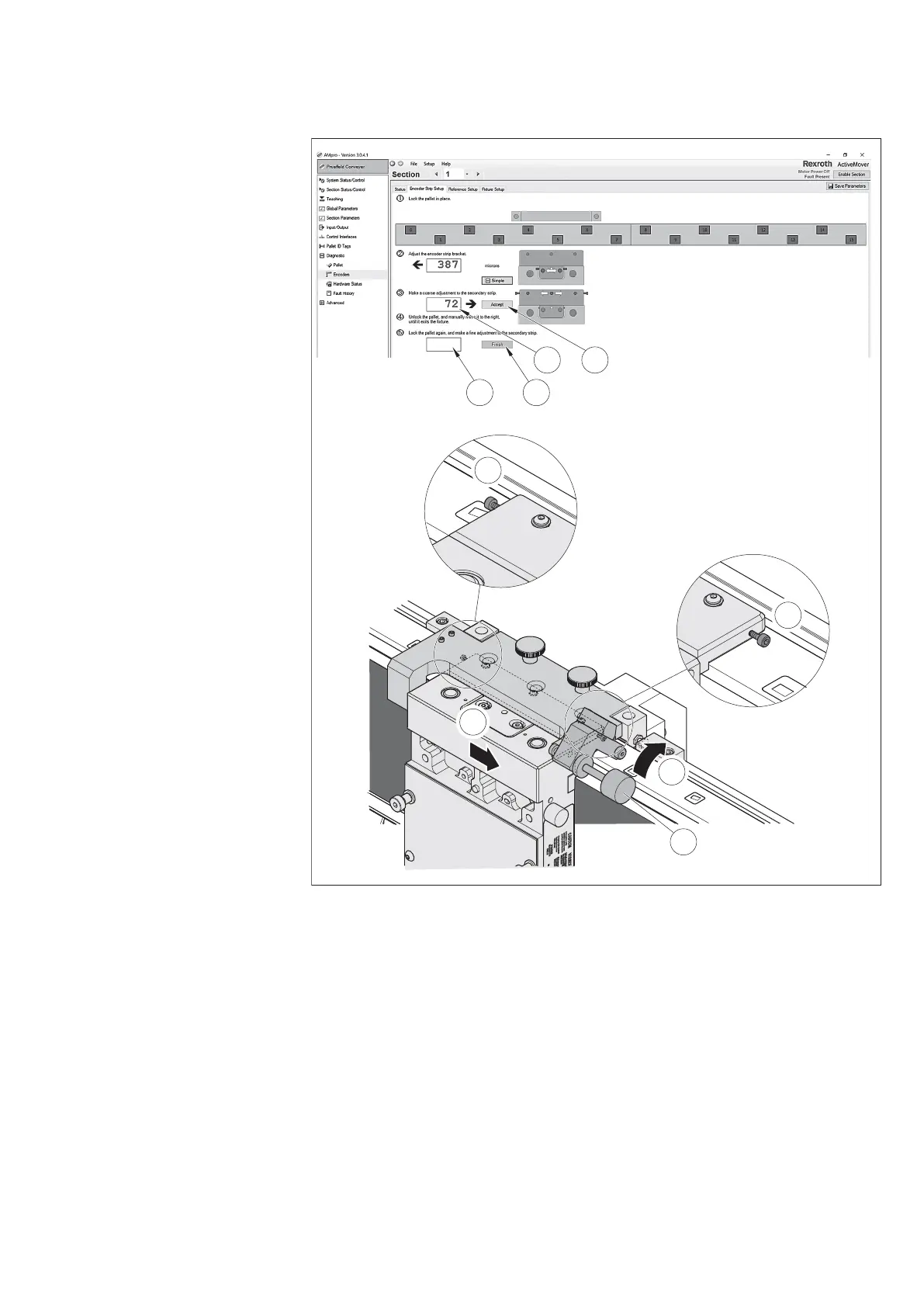

Adjusting the secondary measuring system (2)
9. Start AMpro and
select the Advanced
Encoders Encoder
Strip Setup window.
10. Observe the value
displayed under
on the AMpro screen
while you make a rough
setting on the secondary
mechanic system.
- If the value is ok
(green), go to step 12
- If the value is not OK
(red), go to step 11.
11. Move the measuring
system with the auxiliary
screws until the display
is green.
12. Click on Accept.
13. Loosen the knurled
screw.
14. Fold the knurled screw
upwards.
15. Push the WT to the right
by 15 cm.
16. Repeat steps 6 to 8.
17. Observe the fi ne
adjustment value and
move the measuring
system with the auxiliary
screws until the display
is green.
