Bosch Rexroth ActiveMover - Replacing the Contact Pressure Springs

Maintenance and repair 135/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
10.4.7 Replacing the contact pressure springs

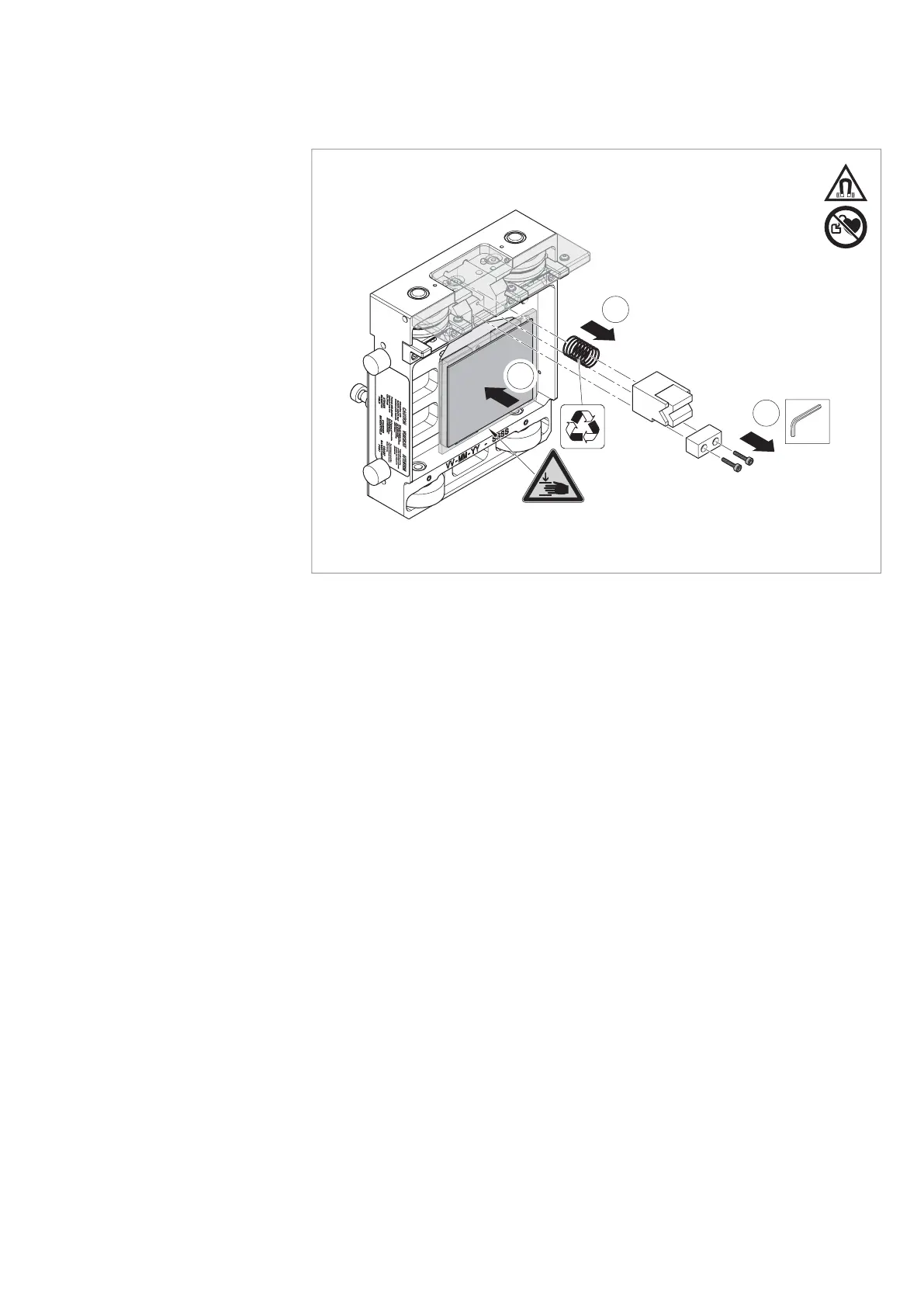

Fig. 93:
3
4
SW2,5
2x
M
D
=2 Nm
2
557 186-82
Replacing the contact pressure springs
Necessary spare parts
• Contact pressure spring
1. Remove the WT from
the ActiveMover
(see chapter 7.5.14).
2. Place the protective plate
with the plastic cover on
the magnetic kit!
3. Remove the
lubricating felt holder
(see chapter 10.4.6).
4. Remove the contact
pressure springs.
5. Install the new contact
pressure springs and the
lubricating felt holder in
reverse order.
