88/188 Installation
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
7.5.16 Assembling the power supply

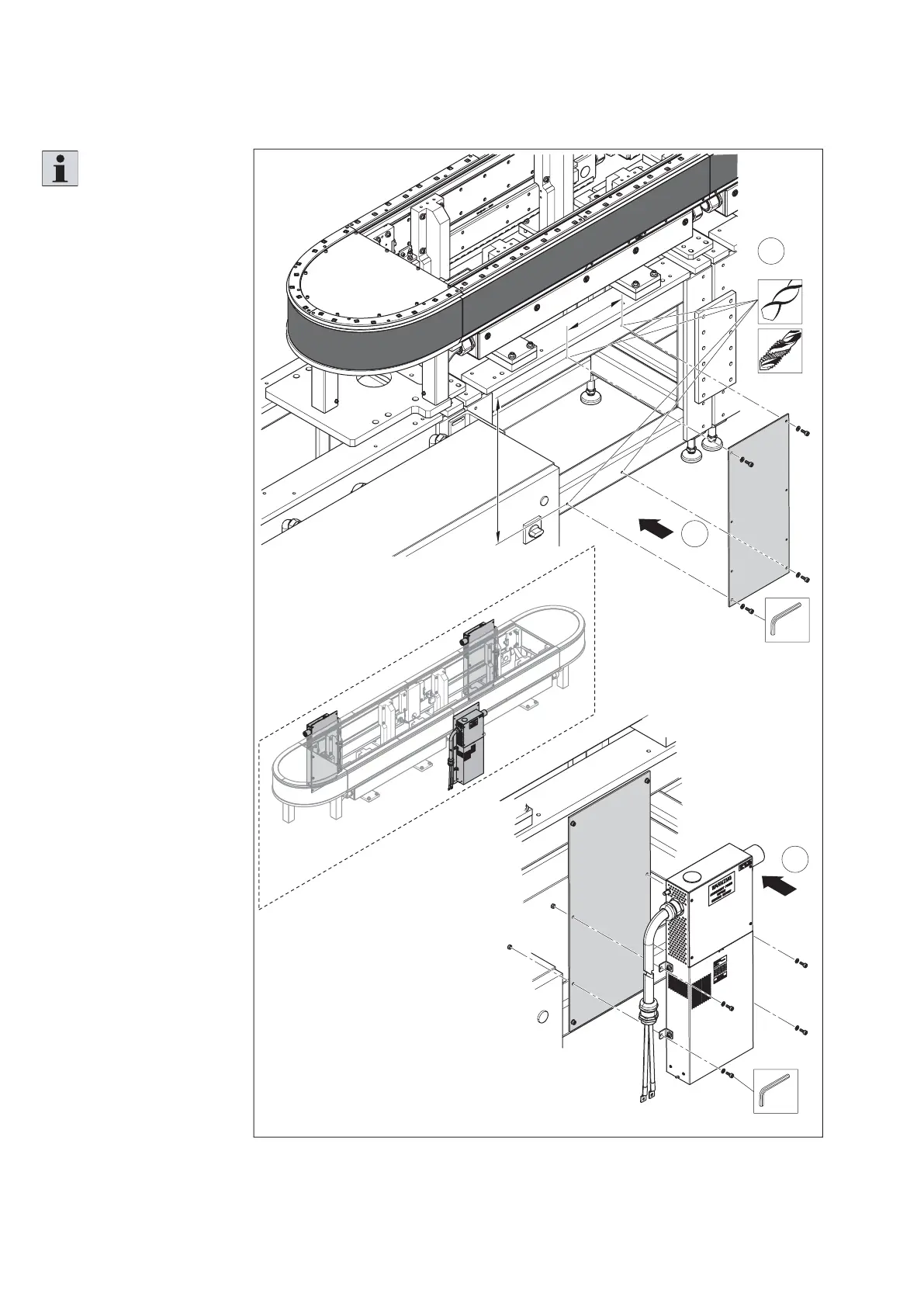

Fig. 64:
Ø5
M6
1
2
X
SW4
4x
M
D
=10 Nm
SW5
4x
M
D
=7 Nm
3
220,3
510
557 186-58
Assembling the power supply
Please note:
• The power supplies
must be evenly distributed
across the ActiveMover
section (see detail X).
• The power supplies
should be installed
on the section/curve
modules with the
highest performance
requirements, if possible.
1. Prepare 4 fi xing holes
according to the drawing
dimensions.
2. Assemble the mounting
plate.
3. Install the power supply.
