Bosch Rexroth ActiveMover - Power Supply 3 842 559 435

About this product 41/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
5.2.11 Power supply 3 842 559 435

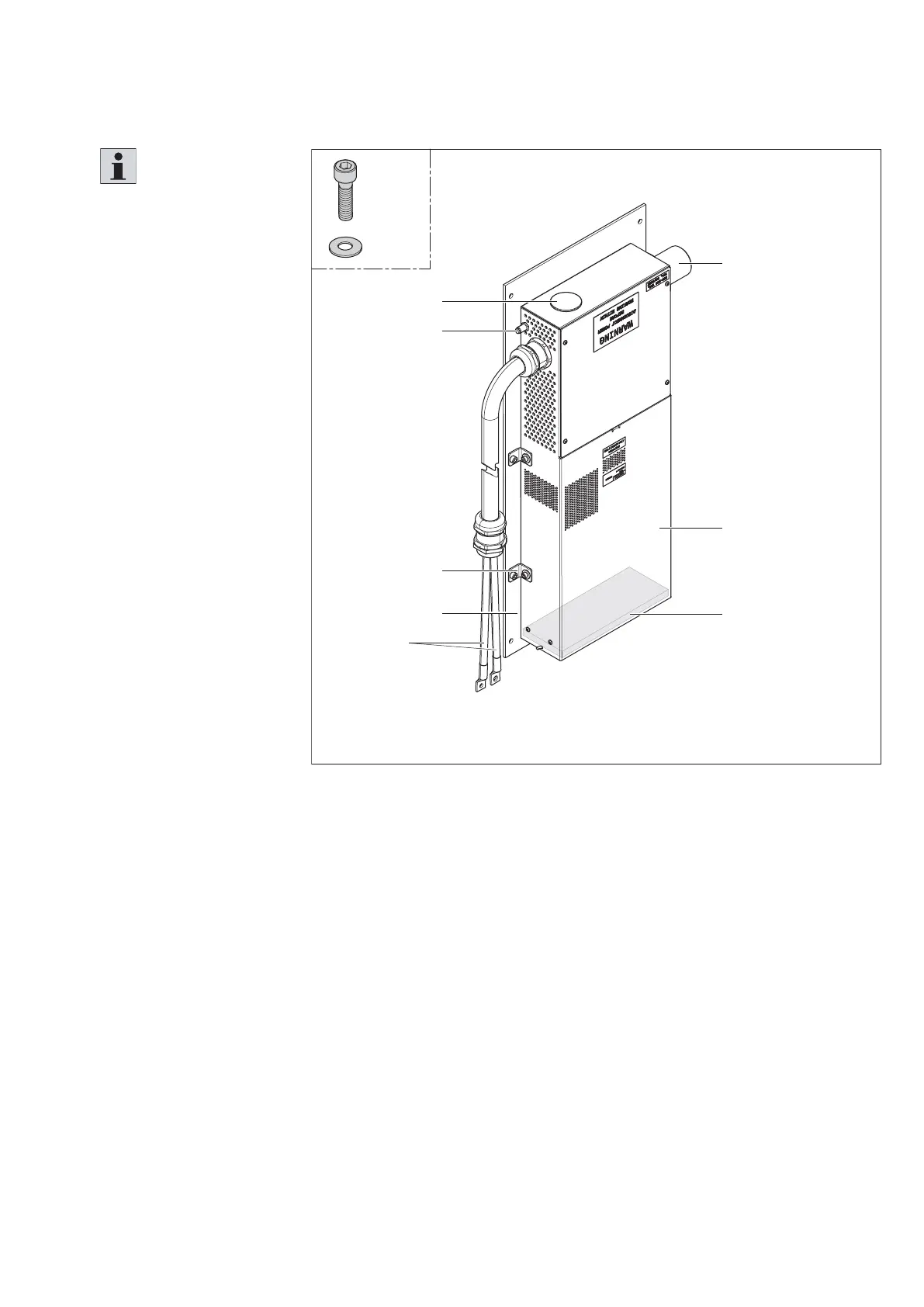

Fig. 20:
557 186-20
A
B
E
C
D
H
G
F
4 x
M5 x 16
4 x
M5
Power supply
Please note:
• For information on
electrical connection,
see chapter 7.6.14.
A:
Housing
B:
Plug connector
(230 V AC)
C:
Alternative plug
connector (230 V AC)
D:
PLC monitoring
connection output
(24 V DC)
E:
Filter
F:
Fixing plate
G:
Mounting bracket
H:
Connection cable
(0 V, 28 V DC)
