112/188 Commissioning
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
8.1.3 Resistance between motor cable (0 V) and control voltage (24 V)

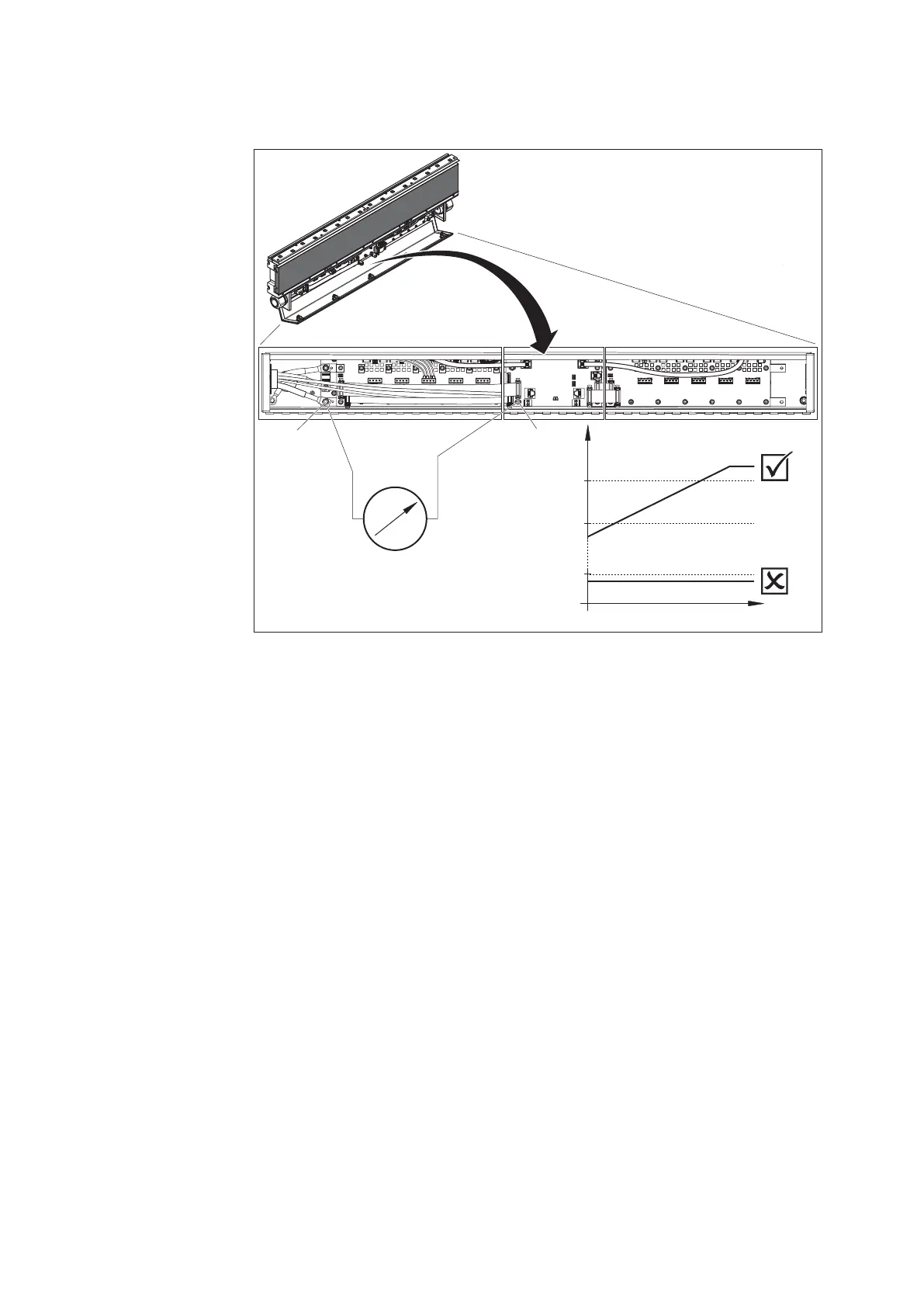

Fig. 85:
R
[Ω]
t
500
5
1000
0
50
HF
R
557 186-129
Resistance between motor cable (0 V) and control voltage (24 V)
F:
Control voltage
connection (24 V)
H:
Motor cable
connection (0 V)
Control voltage
connection (0 V)

Measurement OK

Short circuit present
 Troubleshooting
see chapter 11.1
