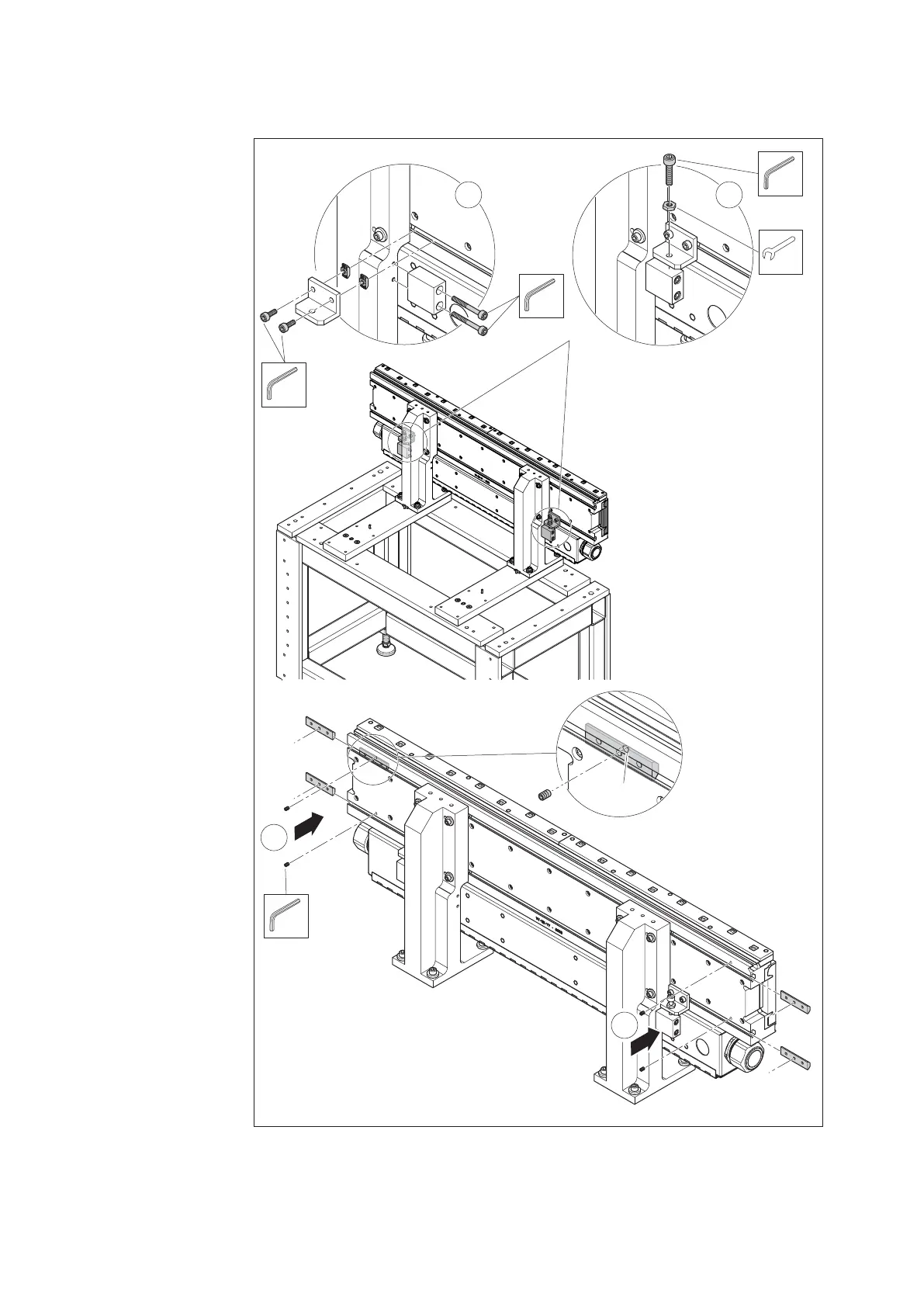

Fig. 38:
557 186-37
SW5
4x
M
D
=7 Nm
SW5
4x
M
D
=7 Nm
14 15
2x
M
D
=21 Nm
SW6
2x
M
D
=18 Nm
SW13
16
SW5
4x
M
D
=7 Nm
16
!
Assembling the section module on a base frame (2)
14. Install the height
adjustment.
15. Turn the setting screw
all the way down onto
the block and tighten
the screw.
16. Mount the sliding
blocks for fastening the
profi le connector. The
thread for the headless
setscrew must be
located above the index
bore of the section
module!
 Install the second
section module on the
base frame accordingly.
