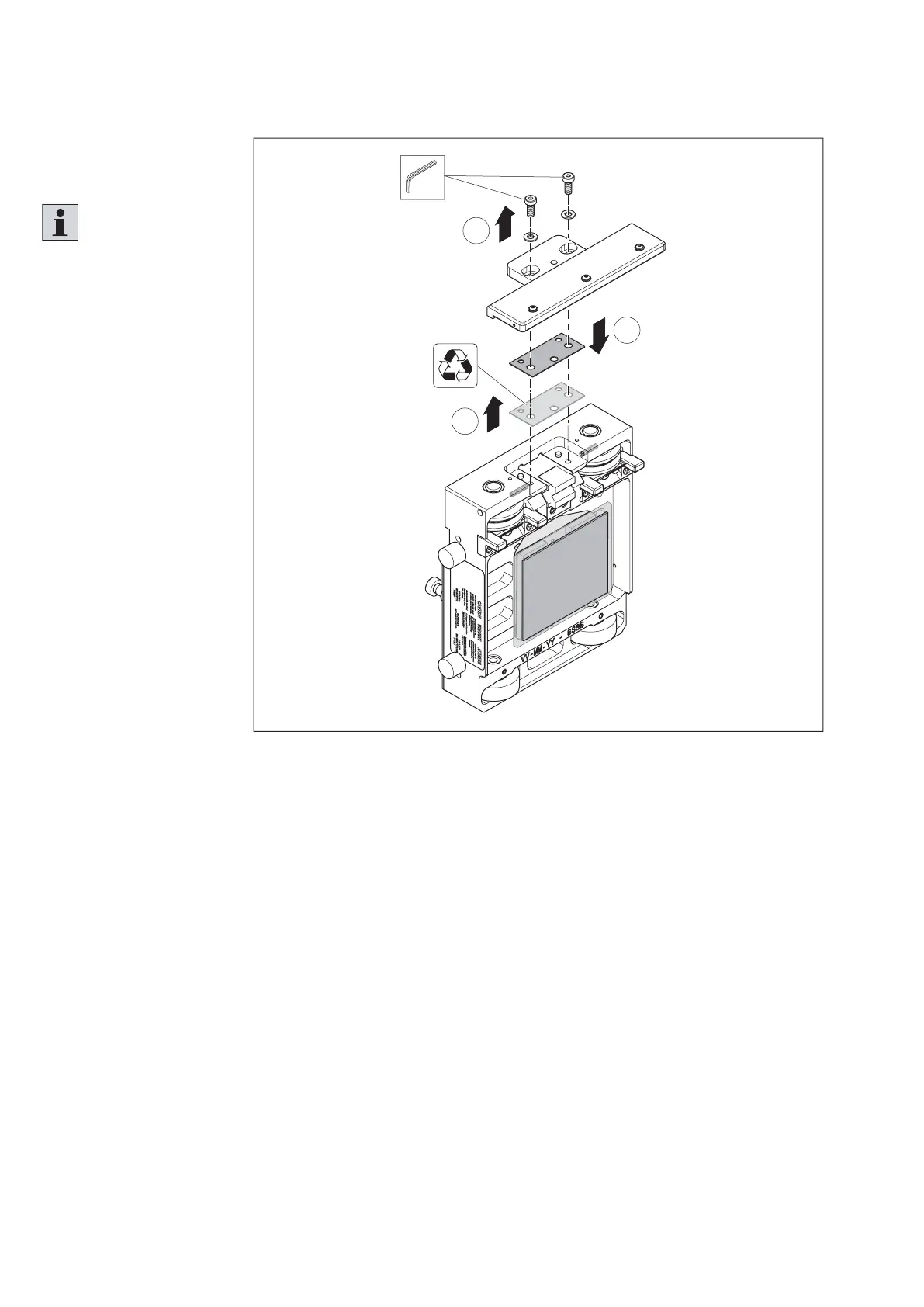

Fig. 116:
3
2
4
557 186-105
SW4
2x
M
D
=5,4 Nm
Setting the measuring system distance
Adjust the distance if
necessary:
Please note:
The measuring system
can be destroyed by
magnetic fi elds. Do not
touch the measuring system
with magnetic objects.
2. Disassemble the
measuring system
(see chapter 10.4.5).
3. Remove the spacer
washer.
4. Install a suitable
spacer washer to
maintain the distance
X = 0.5 mm (± 0.3 mm).
5. Assembly is done in the
reverse order.
