168/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04

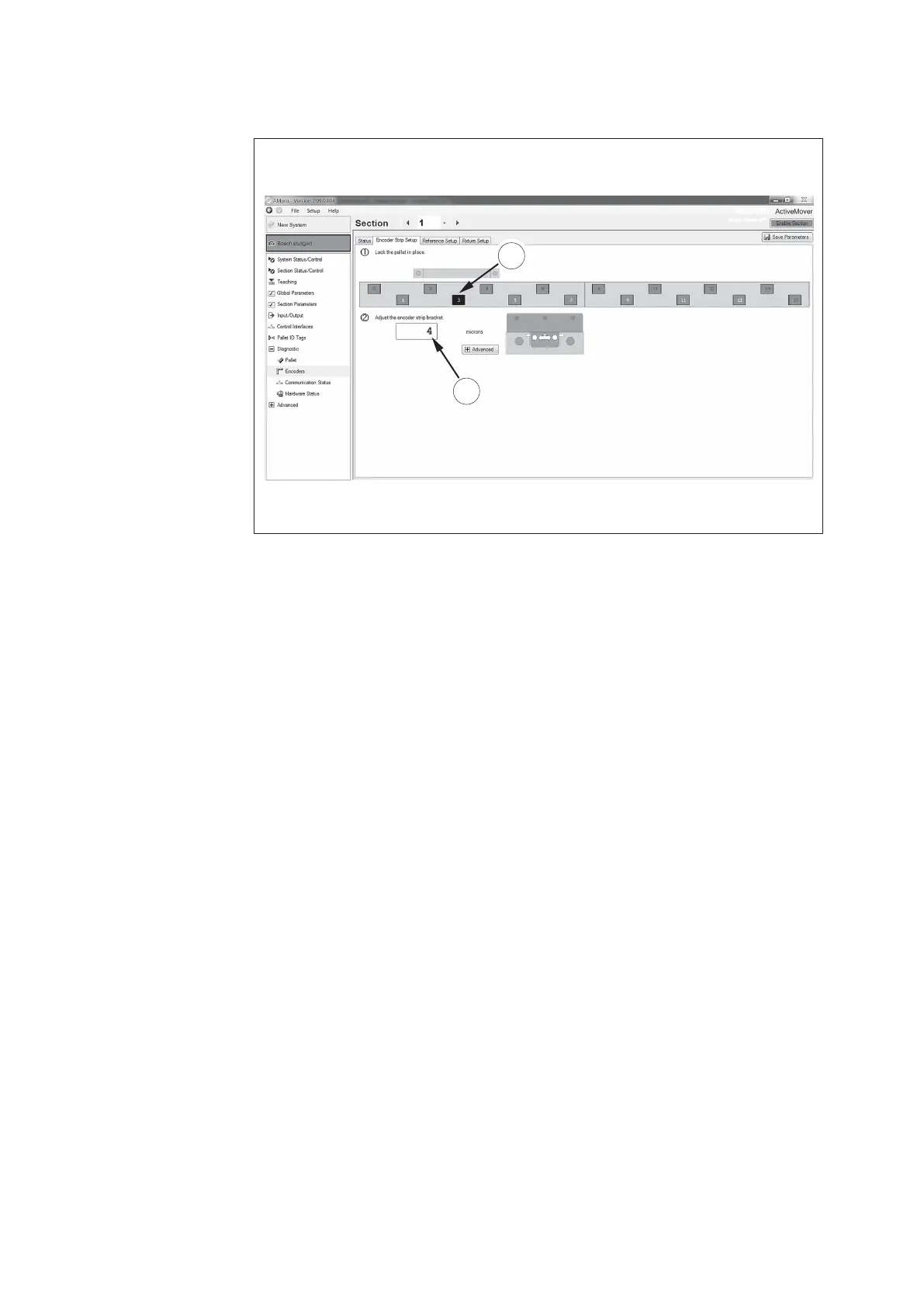

Fig. 126:
7
8
557 186-115
Checking position of the calibration set (2)
6. Start AMpro and
select the Diagnostic
 Encoders  Encoder
Strip Setup window.
7. Click on the Encoder
with which the fi xing
element is centrally
aligned (uneven number).
8. The display should
be ±4 µm.
