44/188 About this product
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
5.2.14 Connection kit 3 842 559 449

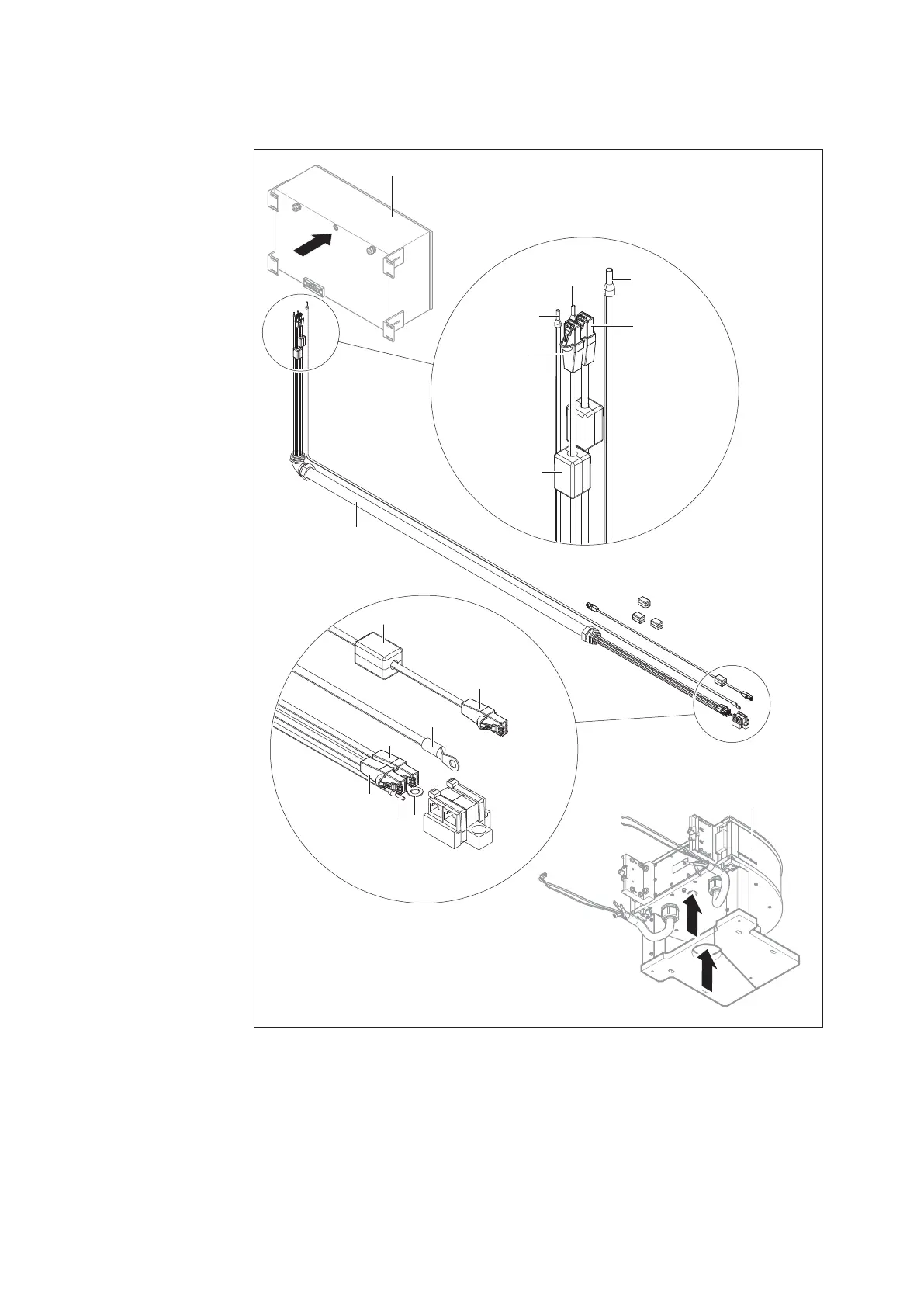

Fig. 23:
557 186-23
C
F
D
D
E
E
G
G
D
E
E
D
C
A
B
H
Connection kit 3 842 559 449
Connection kit for the
electrical connection
of curve module
3 842 559 430 and
control cabinet.
A:
Control cabinet
B:
Curve module
C:
Grounding cable
D:
Network cable
(7600 mm)
E:
Control voltage cable
(24 V DC/0 V)
F:
Network cable
(1000 mm)
G:
Ferrite
H:
Cable protective pipe
(6500 mm)
